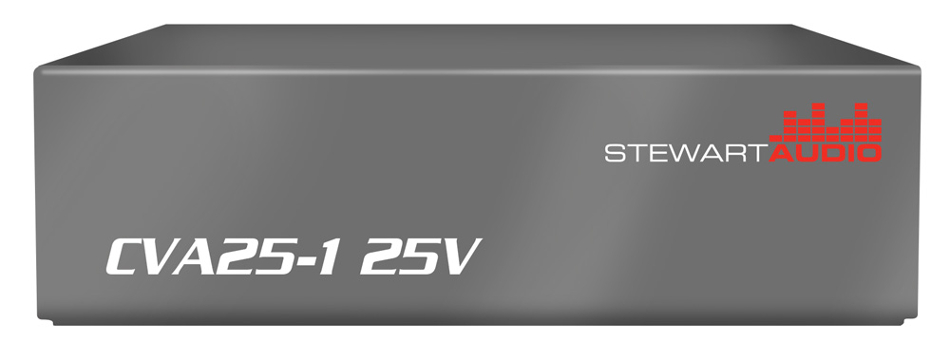

Stewart Audio CVA25-1 25V
50W Mono Sub-Compact 25V Amplifier

OUR PART #:  CVA25-1-25V

The sub compact CVA25-1 25V from Stewart Audio is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations.
Learn More
Our Price: $239.00
List Price: $289.00
You save 17%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Stewart Audio CVA25-1 25V
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The sub compact CVA25-1 25V from Stewart Audio is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the CVA25-1 25V allows amplification to be located in places normally off limits to standard amplifiers without compromising sound or power. The Plenum rating (UL 2043) and remote volume control further compliment the recessing options. Stewart Audio's Signal Sense Power Technology (SSPT) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life. Like all Stewart Audio products, the CVA25-1 25V is designed for sonic accuracy, high efficiency and extended duty cycles.

Stewart Audio CVA25-1 25V Features:

  • Sub Compact 1/4 rack package
  • Mono constant voltage amplifier (25V)
  • Music and fire alarm muting
  • Clean full-range dynamic power
  • Signal Detect trigger for sleep & wake up

Stewart Audio CVA25-1 25V Specifications:

  • 25V Power Output: 50W
  • Frequency Response (+0, -3 dB): 30 Hz - 20 kHz
  • Power Bandwidth (+3dB, -3dB): 80 Hz - 30 kHz
  • THD+N: < 0.1% @ Full Power
  • Signal-to-Noise Ratio: > 80dB
  • Remote Volume Control: 0 - 10VDC
  • Input Sensitivity: 0.5V (-6 dBV)
  • Standard Voltage Gain: 50X (34dB) @ 25V Out
  • Input Impedance (Balanced/Unabalanced): 20kOhms / 10 kOhms
  • Standby, Idle Current Draw, 1/8 PowerDraw: 0.005/0.01/0.15 Amps
  • Class: D
  • Input Connectors: Euro Block 3-pin, 3.5mm
  • Output Connectors: Euro Block 2-pin, 5mm
  • Power Supply: External in-line 48VDC(Included), 2-pin Euro Block
  • Cooling: Convection-Cooling (No Fans)
  • Controls: Level
  • LED Indicators: Power, Signal Present &Clip
  • Construction: Aluminum Chassis
  • Dimensions (HxWxD): 1.25" x 4.35" x 3.2"
  • Weight with Power Supply: < 0.95 lbs(0.43kg)
  • Warranty: 3 years
  • Plenum Rating: UL 2043 Approved
