West Penn 25227B-BK-500
500' 2-Conductor 12AWG Extra Flexible Plenum Cable in Black

OUR PART #  25227B-BK-500

Our Price: $209.20
List Price: $338.60
You save 38%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

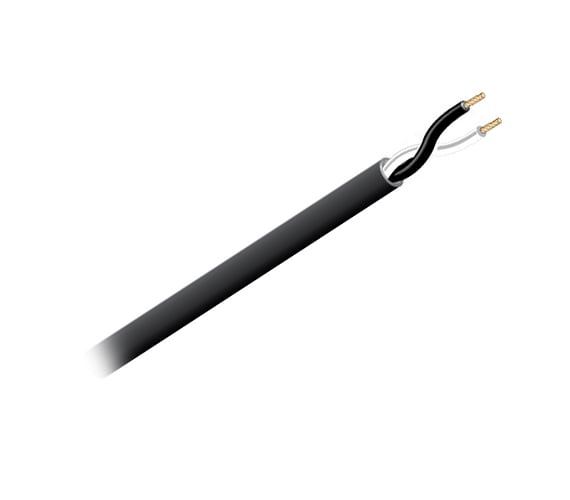

The 25227B is a 12/2 Stranded bare copper conductors, unshielded with an overall jacket.

West Penn 25227B-BK-500 Applications: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)

West Penn 25227B-BK-500 Specifications:

  • Conductor: 12 AWG Bare Copper
  • Stranding: 19x25
  • Insulation Material: Flex Plenum PVC
  • Insulation Thickness: 0.010'' Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: Flex Plenum PVC
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.256'' Nom.
  • Approximate Cable Weight: 54 Lbs/1M' Nom.
  • Flame Rating: NFPA 262 Flame Test
  • Temperature Rating: -10°C To +60°C
  • Operating Voltage: 150 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 36 pf/ftNom.
  • DC Resistance per Conductor @ 20deg C: 1.7 Ohms/1M'Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Gray
  • RoHS Compliant: Yes
