Allen Products/Adaptive Technologies MM-060
Pan & Tilt Speaker Wall Mount

OUR PART #:  MM-060-BLACK

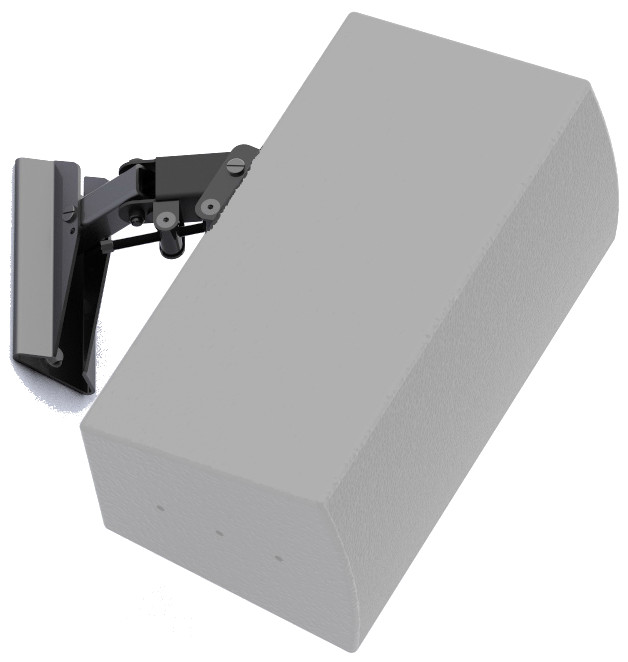

The Allen Products MM-060 Speaker Wall Mount attaches both to the back and bottom panels of loudspeakers and aims them from walls and other vertical structures.
Learn More
Our Price: $240.00
List Price: $300.00
You save 20%!
Write the first review.
Allen Products/Adaptive Technologies MM-060
Qty:
In Stock
Related Products

The Allen Products MM-060 Speaker Wall Mount attaches both to the back and bottom panels of loudspeakers and aims them from walls and other vertical structures.

Once secured, the mount offers up to 180 degrees of pan angle adjustments and up to 45 degrees of no-drift tilt adjustments, compliments of a unique screw drive tilt mechanism.

This mount is easy to install and aim most mid-sized loudspeakers. They are solidly constructed with built-in safety features and a load-rating of 7:1 design factor.

The installation sequence makes it easy for the installer. The wall plate installs first. Then the mount secures to the speaker. Next, the mount's arm is inserted into the wall plate where the weight of the speaker is taken by the wall plate. The installer is now hands-free to anchor, aim and wire the speaker and move on to the next speaker.

Allen Products MM-060 Features:

  • Infinite no-drift tilt adjustments with screw-drive
  • Pan angle secured with clutch style lock
  • Mounts to walls, studs and optional stud plate
  • Wall plate makes installation quick and safe
  • Adapts to 4 hole mounting patterns including 2-3/4" x 5" and 2-1/4" x 4"

Allen Products MM-060 Specifications:

  • Material: Structural Steel
  • Finish: Powder Coat
  • Color: Black
  • Tilt Adjustment: 45° max.
  • Swivel Adjustment: 180° max
  • Working Load Limit: 60 lbs. (27.3 kg) max
  • Design Factor: 7:1 safety ratio
  • Net Weight: 6.1 lbs (2.8 kg) each
  • Shipping Weight: 8 lbs (3.6 kg) each
11â Extender Arm for MM-060 Speaker Wall Mount
ATM/Adaptive Technologies MultiMount MM-060-EXT-11 11” Extender Arm for MM-060 Speaker Wall Mount
The Allen Products MultiMount™ MM-060-EXT-11 extender arm replaces the existing arm on Allen's MultiMount MM-060 speaker wall mount (sold separately) and extends the distance of the speaker from the wall.Allen Products MultiMount ...
