Panasonic Lens Control Kit


Our Price: $778.70
List Price: $799.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

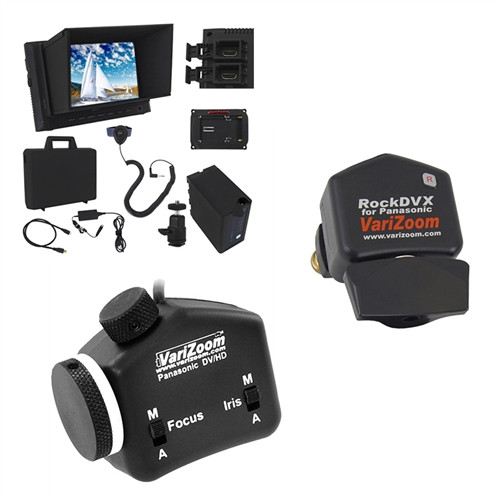

The Varizoom VZUSROCKZFIHD is a lens control kit for Panasonic Camcorders.  It includes the VM7K 7" HDMI LDC Monitor, the VZROCKDVX zoom control, and the VZPFI precision focus and iris control.

Varizoom VZUSROCKZFIHD Features (by component):


Includes everything you need for monitoring your video productions. Starting with our ultra-sharp VZM7 monitor for accurate representation of your video feed, this kit includes accessories and features you won't find anywhere else. The collapsible sunhood/screen protector offers a professional look, excellent viewing outdoors, and superior protection during storage & transport. The high-capacity battery system will keep your monitor running for up to 6 hours. Pre-mounted with the kit are a Sony L series battery plate and the extremely handy HDMI locks to prevent the cable from loosening or damaging the monitor connectors should the cable get yanked or bent. Also included are the swivel shoe mount for attaching the monitor to your camera and the foam-lined hard case that holds everything together and protects your investment. Last but not least is the innovative zoom button that allows you to remotely put the monitor in pixel-to-pixel and peaking modes for extremely accurate focusing. Buy this kit to save or purchase the accessories a la carte. Don't forget about our optional VZM7-RC rubber case protector to make your monitor stand up to the rigors of field use.

  • VZM7 monitor w/ power supply and 2 HDMI cables (mini-std and std-std)
  • Hard Sunhood/Screen Protector
  • High Capacity L Series Battery 47Wh
  • Compact Travel Charger
  • Battery Plate Sony L Series (premounted)
  • Remote Zoom Button for Focus Assist
  • Swivel Shoe Mount for camera-top mounting
  • HDMI locks for In and Out
  • Hard Case w/ foam lining
  • Accepts all HD signals up to 1080p
  • HDMI In / Out (loop through)
  • DSLR Scaling to allow full-screen viewing of image from cameras such as Canon 5D
  • Auto Aspect Ratio Detection
  • Monochrome (B&W) mode
  • Image Flip for inverted mounting
  • Safety Area markers (5 levels), Centerline Marker, 4:3 area markers
  • Underscan and Overscan modes
  • Color Temperature Presets (D65 and D93 standards), or user-defined through RGB settings
  • Brightness, Contrast, Saturation, Sharpness adjustments
  • Customizable Menu Options for menu duration, position, text color and language
  • Built-In Speaker and Headphone jack for audio monitoring
  • Pixel-to-Pixel Zoom and Peaking for Focus Assist


Specifically designed for Panasonic cameras, the VZROCKDVX offers the finest degree of zoom control with a wide-sweep rocker favored by broadcast operators. Combining this with a compact, intuitive design, the VZROCKDVX represents the best of both worlds.

  • Controls Zoom
  • Wide-sweep Variable Pressure-sensitive Side-to-Side Rocker for smooth, sustainable zooms
  • Low-profile Record start/pause button
  • Material: ABS


Specifically designed for Panasonic cameras, the affordable and versatile VZPFI offers precision focus and iris control, in a stylish, lightweight body that houses Varizoom's unique dual knob adjustment system, which allows for easing into proper focus and exposure in either direction. Operator may switch between auto and manual at anytime. Independent focus/iris knobs allow for two people to operate together for critical focus during moving shots or crane moves-imagine the possibilities! The manual/auto switches lock into position, for watching the picture, not your hands. The VZ-PFI is completely intuitive and smooth, requiring no setup, power, or operator skill.

  • Controls Focus/Iris
  • Independent focus/iris knobs
  • Smooth and quiet precision knobs provide ultra-fine adjustment
  • Locking Position switches ensure confidence in manual/auto mode selection

Varizoom VZUSROCKZFIHD Specifications (by component):


  • Includes:  Monitor, power supply, 2 HDMI cables (standard-standard & standard-mini), VZM7HD sunhood/screen protector, VZMBPS Sony L series battery plate, high-capacity battery (6 hrs.), VZMCH charger, VZMZB remote zoom button, VZSHOE swivel shoe mount, VZMLOCK HDMI cable locks (2), VZMCC hard carrying case.
  • Screen Size:  7” diagonal
  • HDCP Compliant:  YES
  • Native Resolution:  1024 x 600
  • Brightness:  250 cd/m2
  • Contrast:  700:1
  • Backlight Type:  LED
  • Video Formats:  1080 – 24p/24psf/25p/30p/50i/60i/50p/60p; 720 - 50p/60p; 480i; 480p; 576i; 576p
  • Response Time:  10ms
  • Viewing Angle:  L75° / R75° / U70° / D75°
  • Input Voltage:  12VDC nominal (6.5 – 36VDC max range)
  • Mount Type:  ¼”-20 female (4x – top, bottom, left, right)
  • Inputs/Outputs:  HDMI (in), HDMI (out), Headphone 3.5mm (out), “Zoom” (in) 3.5mm, XLR power (4+, 1-)
  • Size:  8” x 5.4” x 1.5”
  • Weight:  1.25 lbs.
  • Battery Capacity:  47 Wh / 6600 mAh / approx. 6 hrs. runtime
  • Power consumption:  = 8W
  • Warranty:  1 year (does not cover screen damage)


  • Width:  2"
  • Length:  2.75"
  • Max Clamp Diameter:  1.25"
  • Cord Length:  40"
  • Weight:  0.25 lbs.
  • Material:  ABS
  • Warranty:  2 years parts/labor


  • Width:  2"
  • Length:  1.75"
  • Max Clamp Diameter:  1.25"
  • Cord Length:  40"
  • Weight:  0.20 lbs.
  • Material:  ABS
  • Warranty:  2 years parts/labor
