DPA Microphones 4088-B10
d:fine Cardioid Headset Microphone for Shure Wireless in Black

OUR PART #:  4088-B10

The DPA Microphones 4088-B10 is a miniature cardioid headset mic built on the finest DPA experiences in microphone design and manufacturing...
Learn More
Our Price: $829.95
Write the first review.
DPA Microphones 4088-B10
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

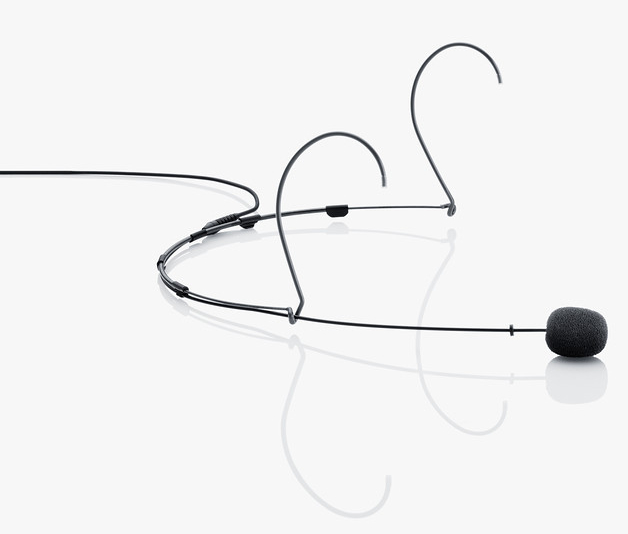

The DPA Microphones 4088-B10 is a miniature cardioid headset mic built on the finest DPA experiences in microphone design and manufacturing, providing the best sounding directional headworn microphone available today for performing talent of various sorts.

Open, natural and reliable are the most describing words for this microphone. The high quality of the microphone itself means that you will hear the sound of the voice right away - not the microphone. In acoustically demanding live performance environments, where background noise and feedback is a concern, the 4088 will tackle these challenges with ease.

The smooth and elegant design of the 4088 makes it the most invisible headworn cardioid microphone today. Sound quality, visual elegance and versatility go hand in hand to transform every show into the performance of a lifetime. The capsule is a pre-polarized first order pressure gradient transducer, hidden in a small and lightweight housing with dimensions just slightly larger than DPA's omni capsules.

The mechanical design is based on the proven quality of the 4066 headset microphone. The headset mount is exactly the same; the boom however is 3 centimeters longer in order to meet the need for placement at the corner of the mouth.

The 4088-B10 model features a TA4F adapter that is designed for use with Shure wireless systems and comes in Black.

DPA Microphones 4088-B10 Includes:

  • Microphone (boom, headset, cable)
  • Pre-mounted pop screen
  • Five (5) foam windscreens
  • TA4F Adapter for Shure Wireless

DPA Microphones 4088-B10 Specifications:

  • Directional Characteristics:  Cardioid
  • Principle of Operation:  Pressure gradient
  • Cartridge Type:  Pre-polarized condenser element with vertical diaphragm
  • Frequency Range, +/- 2 dB:  100 Hz – 20 kHz (4 – 6 dB soft boost at 15 kHz)
  • Sensitivity, Nominal, +/- 3 dB at 1 kHz:  6 mV/Pa; 44 dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted:  Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent Noise Level ITU-R BS.468-4:  Typ. 38 dB (max. 40 dB)
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):  68 dB (A)
  • Total Harmonic Distortion (THD):  < 1 % up to 123 dB SPL peak; < 1 % up to 120 dB SPL RMS sine
  • Dynamic Range:  Typ. 97 dB
  • Max. SPL, Peak Before Clipping:  144 dB
  • Output Impedance:  30 – 40 Ohms
  • Cable Drive Capability:  Up to 984 ft (300 m)
  • Power Supply:  For wireless systems: Min. 5 V – max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/- 4 V for full performance.
  • Connector:  TA4F for Shure Wireless
  • Color:  Black, brown or beige
  • Microphone Weight:  0.5 oz (14 g) incl. cable and MicroDot connector
  • Microphone Diameter:  0.25 in (5.5 mm)
  • Microphone Length:  0.5 in (11 mm)
  • Cable Length:  3.9 ft (1.2 m)
  • Cable Diameter:  0.06 in (1.6 mm)
  • Polarity:  Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Operating Temperature Range:  14 to 113 °F (-10 to 45 °C)
