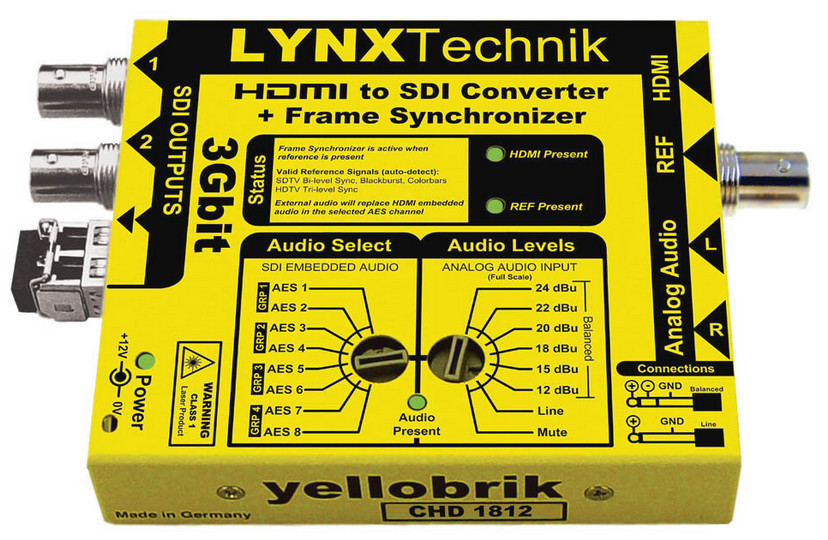

TecNec LYNX Technik CHD 1812 yellobrik
HDMI to SDI Converter

OUR PART #  LNX-CHD-1812

Our Price: $779.00
List Price: $820.00
You save 5%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TecNec LYNX Technik CHD 1812 yellobrik is a versatile and compact HDMI to SDI converter with integrated frame synchronizer. It is an ideal solution for any application which requires a fully synchronized SDI input from an external asynchronous HDMI source.

The flexible reference sync input will accept any analog video sync format including SD bi-level sync, black burst, colorbars and tri-level HD sync. The sync input is auto detecting and fully cross lock compatible. For example: An SD black burst reference can be used to frequency lock an HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion.

A stereo pair of external analog inputs can be embedded into any AES channel. Inputs can be either professional balanced audio with selectable full scale level, or unbalanced consumer line level audio.

Any audio present in the HDMI stream will be embedded into the SDI outputs, or can be replaced with the external audio input.

On board SFP port is designed to for SDI fiber output (OH-TX-1) is also available as an add on option.

What's Included:

    1 x CHD 1812 Module
    1 x AC Power Supply
    1 x HDMI Cable
    2 x Phono to RCA Adapters
    2 x Module Mounting Brackets
    1 x Plastic Transport Case

TecNec LYNX Technik CHD 1812 yellobrik Features:

  • SFP Module Slot for Fiber Input & Output (SFP Modules not included - sold separately)
  • Supports SD/HD/3G -SDI formats.
  • 3D support
  • HDCP Compliant
  • Integrated Frame Synchronizer
  • Multi-format sync reference input - cross lock compatible
  • 2 x SDI outputs with optional SDI fiber output
  • HDMI embedded audio passed transparently
  • 2 x external analog audio inputs
  • Professional balanced analog audio inputs or unbalanced line level audio inputs
  • Selectable AES channel for embedding external audio
  • HDMI, reference and audio present LED indication

TecNec LYNX Technik CHD 1812 yellobrik
HDMI to SDI Converter

OUR PART #  LNX-CHD-1812

Product Information:

The TecNec LYNX Technik CHD 1812 yellobrik is a versatile and compact HDMI to SDI converter with integrated frame synchronizer. It is an ideal solution for any application which requires a fully synchronized SDI input from an external asynchronous HDMI source.

The flexible reference sync input will accept any analog video sync format including SD bi-level sync, black burst, colorbars and tri-level HD sync. The sync input is auto detecting and fully cross lock compatible. For example: An SD black burst reference can be used to frequency lock an HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion.

A stereo pair of external analog inputs can be embedded into any AES channel. Inputs can be either professional balanced audio with selectable full scale level, or unbalanced consumer line level audio.

Any audio present in the HDMI stream will be embedded into the SDI outputs, or can be replaced with the external audio input.

On board SFP port is designed to for SDI fiber output (OH-TX-1) is also available as an add on option.

What's Included:

    1 x CHD 1812 Module
    1 x AC Power Supply
    1 x HDMI Cable
    2 x Phono to RCA Adapters
    2 x Module Mounting Brackets
    1 x Plastic Transport Case

TecNec LYNX Technik CHD 1812 yellobrik Features:

  • SFP Module Slot for Fiber Input & Output (SFP Modules not included - sold separately)
  • Supports SD/HD/3G -SDI formats.
  • 3D support
  • HDCP Compliant
  • Integrated Frame Synchronizer
  • Multi-format sync reference input - cross lock compatible
  • 2 x SDI outputs with optional SDI fiber output
  • HDMI embedded audio passed transparently
  • 2 x external analog audio inputs
  • Professional balanced analog audio inputs or unbalanced line level audio inputs
  • Selectable AES channel for embedding external audio
  • HDMI, reference and audio present LED indication
