Liberty AV Solutions E-MVGAMAM-M-6

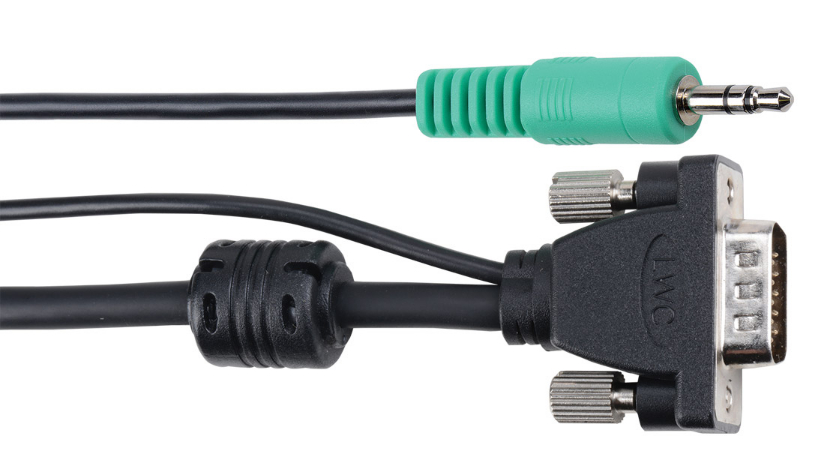

6 ft EDID Compliant Micro Molded VGA Cable with Stereo Audio Assembly

OUR PART #:

The E-MVGAMAM-M-6 from Liberty AV is a cable that is designed to be used in tabletop, podium, and presentation system applications.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The E-MVGAMAM-M-6 from Liberty AV is a cable that is designed to be used in tabletop, podium, and presentation system applications. A very flexible UL listed cable to permit sharp bends and constant movement, this product is ideal to interface mobile content users with laptops to the video infrastructure. The audio lead is purposefully longer at 22 inches for the source side, this is especially helpful when the audio jack is on the opposite side of the video jack.

The cable is a miniature coaxial cable design; the attenuation on 32 AWG coaxial cables is such that Libery AV only warrants 1920x1200 WUXGA to 25 feet. Care must be exercised if using this product to interface to passive wall plates and panel junctions as the loss budget could be exceeded by the combination of passive plates and cable attenuation issues. It is recommended the primary use be to patch a source to a display interface, extension device, or active switch. This product is not permitted to be run in a
concealed location (in-wall) per the NEC® unless it is in conduit.

The Micro sized molding on the VGA connectors is substantially smaller than a standard molded VGA connector. The molding measures 1.09 inches from front of molding to back of strain relief. A standard VGA mold can measure 2.0 inches from front to back. The micro cable is only 0.200” in diameter.

Applications:

  • Conference Room
  • Classroom
  • Podium/Presentation

Liberty AV E-MVGAMAM-M-6 Features:

  • Smaller low-profile molding
  • VGA with stereo audio
  • Long audio lead on source side
  • Tabletop and podium applications
  • Flexible cable
  • Convenient cable lengths

Liberty AV E-MVGAMAM-M-6 Specifications:

  • Please consult the attached documentation for this info.
