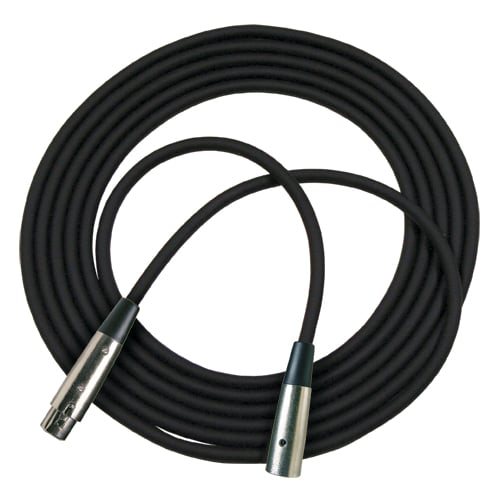

Rapco N1M1-1 1' N1M1 Series XLRF to XLRM Microphone Cable

The RapcoHorizon N1M1-1 microphone cable uses two 24-gauge bare copper center conductors and a serve shield for quiet operation. The outer jacket is a durable and flexible matte PVC compound. The N1M1-1 is a 1 ft cable that features nickel plated Neutrik XLR male and female connectors.

RapcoHorizon N1M1-1 Features:

• Two (2) 24 gauge center conductors
• Utilizes a serve shield process for quiet operation yielding maximum flexibility
• Matte jacket PVC material is very flexible yet durable with very low memory
• Pure copper conductor and shield
• Individually tested for performance and quality

RapcoHorizon N1M1-1 Specifications:

• Cable: MIC1
• Conductor Gauge: (2) 24 Gauge
• Shield: Bare annealed copper serve
• Shield Coverage: 95%
• Jacket: Matte PVC
• O.D.: 0.230"
• Capacitance: 21 pF/ft @ 1 kHz
• Cond.-Shield Capacitance: 37 pF/ft @ 1 kHz
• Characteristic Impedance: 70 Ohms NOMINAL
• D.C. Resistance @ 20°C: 23 Ohms/1000 ft
