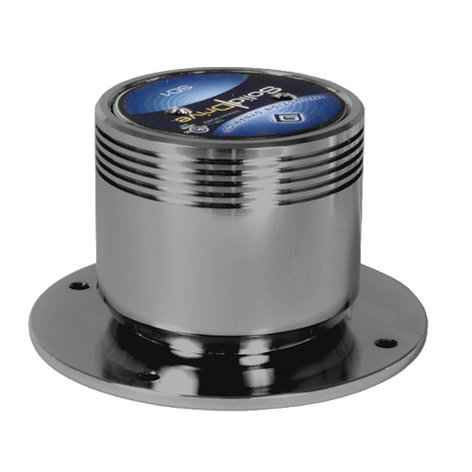

SoundTube SD1
SolidDrive Series Surface- or Glass-Mounted Speakers

OUR PART #  SD1-SOUNDTUBE

Call for price! Not available online.

Select model: (shipping times are approximate)

The Soundtube SD1 is a SolidDrive series speaker that is available in your choice Chrome, Black, or Titanium finishes and also in your choice of surface- or glass-mounted fixtures.

The surface-mount version includes a set of wood screws while the glass-mount version includes an attached double-sided adhesive disc.

Soundtube SD1 Specifications:

  • Type: Full range transducer
  • Frequency Response: 60 Hz – 15 kHz Nominalwithout EQ
  • Nominal Impedance: 8 ohms
  • Recommended Amplification: 10 – 100 Watts
  • Max Program Power: 50 Watts, with 100 Hz 12 dB /octave high-pass
  • Max Continuous Power: 30 Watts
  • Diameter: 2.062" (52.34 mm)
  • Height: 2.30" (58.6 mm)
  • Coverage Angle: 120º
  • Weight: 1.05 lb (0.4725 kg) per drive
  • Shipping Weight: 1.4 lb
  • Shipping Dimensions: 8" H x 8" W x 8" D

SoundTube SD1
SolidDrive Series Surface- or Glass-Mounted Speakers

OUR PART #  SD1-SOUNDTUBE

Product Information:

The Soundtube SD1 is a SolidDrive series speaker that is available in your choice Chrome, Black, or Titanium finishes and also in your choice of surface- or glass-mounted fixtures.

The surface-mount version includes a set of wood screws while the glass-mount version includes an attached double-sided adhesive disc.

Soundtube SD1 Specifications:

  • Type: Full range transducer
  • Frequency Response: 60 Hz – 15 kHz Nominalwithout EQ
  • Nominal Impedance: 8 ohms
  • Recommended Amplification: 10 – 100 Watts
  • Max Program Power: 50 Watts, with 100 Hz 12 dB /octave high-pass
  • Max Continuous Power: 30 Watts
  • Diameter: 2.062" (52.34 mm)
  • Height: 2.30" (58.6 mm)
  • Coverage Angle: 120º
  • Weight: 1.05 lb (0.4725 kg) per drive
  • Shipping Weight: 1.4 lb
  • Shipping Dimensions: 8" H x 8" W x 8" D
