Marshall Electronics VS-577A-3GSDI
2.0MP 1080p 30X Zoom Hybrid Broadcast-IPTV PTZ Dome Camera

OUR PART #:  VS-577A-3GSDI

Network Network Interface Ethernet 10/100base-T (RJ-45) Network Protocol IPv4/v6, TCP, UDP...
Learn More
Our Price: $5,429.00
List Price: $6,389.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics VS-577A-3GSDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Network Network Interface Ethernet 10/100base-T (RJ-45) Network Protocol IPv4/v6, TCP, UDP, IGMP(Multicast),DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, DDNS Security Password protection, IP address filtering, HTTPS encryption API MEI Protocol, SDK, ONVIF, PSIA, MPEG-TS Camera Image Sensor 1/2.8" Exmor CMOS Focal Length F=4.9 ~ 129mm Zoom Optical x30 Digital x12 Maximum aperture ratio F1.6 ~ F4.7 Angle of View Horizontal: 63.7°(wide) ~ 2.3°(tele) Minimum Illuminance Normal: 1.4Lux(color), 0.19Lux(B/W, ICR Off) with 50IRE
High Sensitivity: 0.013Lux(color), 0.002Lux(B/W ICR On) with 50IRE Electronic shutter speed 1/1 ~ 1/10,000 sec Privacy masking 8 regions Flip mode Horizontal, Vertical Image enhancement AE, AWB, AGC, TDN, DNR, BLC, WDR, DSS, Defog, Color Enhancement Video Compression H.264, MJPEG Bitrate Primary: 32Kbps ~ 16Mbps, Secondary x3: 32Kbps ~ 4Mbps Resolutions 352x240 ~ 1920x1080 Frame Rate Max 60fps @ 1920x1080 Output Direct 3G-SDI live view Streaming Primary: H.264, Secondary x 3: H.264/MJPEG Burn-in OSD Multi-lingual Output 3GSDI - Low Latency Live Output Audio Compression G.711 / AAC Sample Rate G.711: 8 KHz, AAC : 32 kHz / 44.1 kHz / 48 kHz Bitrate G.711: 64Kbps, AAC: 64Kbps/128Kbps Streaming G.711: Full-duplex, AAC: Half-duplex Input / Output 1 x Line-In (stereo, RCA type), 1 x Line-Out (stereo, RCA type) Event Event sources Motion, Sensor input, Client disconnection Event actions Notification (E-mail), FTP, PTZ preset, Alarm control, Recording General Housing IP67 Certifications CE, FCC, KC, RoHS External devices 2 x Sensor-In (dry contact, NO/NC)
2 x Alarm-Out (dry contact, NO)
1 x RS-485 port: Direct PTZ control etc Edge storage Micro SD Power supply Min 12V/3A, Min 24V//3.5A, PoE+ (Power over Ethernet): 802.3at Power consumption DC12V/PoE+: Max 30W, AC24V: Max 48W Operating Temperature -10°C ~ 50°C ( 14°F ~ 122°F ) / 20% ~ 80% RH Dimension Dome: Ø148 mm/ Ø 5.8" Weight 3,020g (Housing Net: 3,440g) - See more at: http://www.lcdracks.com/servers-cameras/cameras/dome-VS-577A-3GSDI.php#sthash.QmBk4ty5.dpuf

The VS-577A-3GSDI from Marshall Electronics is a hybrid broadcast IP camera with an ultra low latency 3GSDI output together with four H.264 HD streams up to 1080p/59.94. The VS-577A-3GSDI is an ideal production camera that when utilizing the optional VS-TKC-100 Joystick/Keyboard Controller can follow PTZ (Pan, Tilt & Zoom) action across the set.

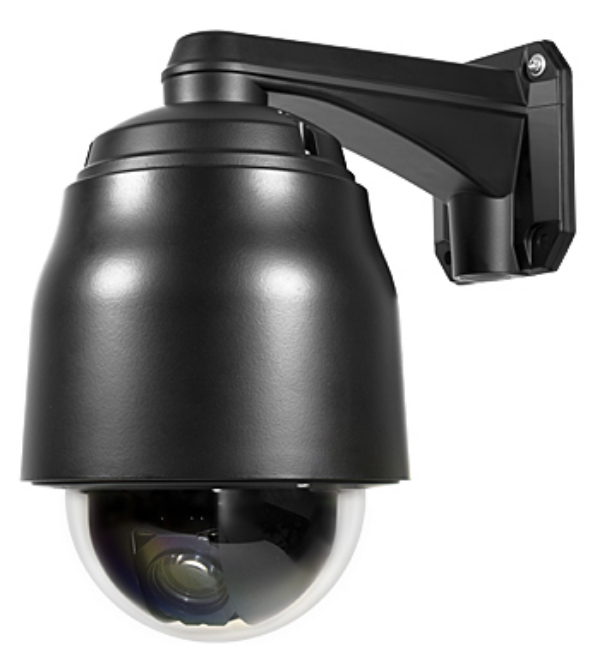

NOTE: Product shown in image is for illustrative purposes only. Product is shown with the optional Wall Mounting Bracket (VS-B570AB-W).

The camera offers all the benefits of broadcast cameras with the added bonus of IP control and streaming. While this unit might look like a security camera it is in fact a full broadcast camera with a hybrid design that allows for quad HD H.264 streams with the convenience of IP control of the camera. When those features are combined with the ultra low latency 3GSDI output and flickerless wide dynamic range, now you have two cameras that are ideally suited for all types of television production, and clearly will be a great asset to reality television shows.

This cameras supports low sub frame latency from the 3GSDI output in various resolutions up to 1080p/59.94. The camera features Marshall's latest generation of codec, with one primary and three secondary streams, all in full HD together with stereo audio. Unicast, multicast, push and pull streaming are supported and ontrolled from a common, easy-to-use browser interface. The VS-577A-3GSDI camera internally runs at 120 frames which allows it to offer Flickerless WDR (Wide Dynamic Range), a technique that allows for a greater range of scene illumination from white to black.  Details in the shadows are better represented and bright parts of the scene do not burn out.

Marshall VS-577A-3GSDI Features:

  • 1/2.8-inch Progressive Scan CMOS
  • 2.0 MP 30X Optical Zoom, 12X Digital Zoom
  • Supports up to 1080p/59.94 or 1080i/59.94
  • 1 x Video Out
  • 3GSDI Model supports Low Latency Live Video Out
  • Quad H.264 Streams Out
  • True Day & Night (ICR)
  • Camera Matches Photometrically with the VS-547
  • Two Way Audio in Stereo
  • Max Stream Out: 1920x1080 at 60FPS
  • True Flickerlless WDR (Wide Dynamic Range)
  • Micro SD Card Recording
  • Motion Detection for Instant Alarm & Recording
  • Adjustable Video Bitrate: 32Kbps~16Mbps for Primary Video, 32Kbps ~ 4Mbps for Secondary Video Streams
  • Fast & Smooth Motion with 360° Pan Rotation (continuous)
  • RS-485 Serial Control supporting Pelco D or Pelco P Protocol
  • Various protocols supported: TCP/IP, Multicast, UDP, HTTP, SMTP & FTP DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
  • Auto Parking / Power Up Action Function
  • Dual Power Options of 12V DC or PoE+ (802at)
  • ONVIF, PSIA Compliant

Marshall VS-577A-3GSDI Specifications:

  • Network:
    • Network Interface: Ethernet 10/100base-T (RJ-45)
    • Network Protocol: IPv4/v6, TCP, UDP, IGMP(Multicast), DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, DDNS
    • Security: Password protection, IP address filtering, HTTPS encryption
    • API: MEI Protocol, SDK, ONVIF, PSIA, MPEG-TS
  • Camera:
    • Image Sensor: 1/2.8" Exmor CMOS
    • Focal Length: F=4.9 ~ 129mm
    • Zoom: Optical x30 Digital x12
    • Maximum aperture ratio: F1.6 ~ F4.7
    • Angle of View: Horizontal: 63.7°(wide) ~ 2.3°(tele)
    • Minimum Illuminance:
      • Normal: 1.4Lux (color), 0.19Lux(B/W, ICR Off) with 50IRE
      • High Sensitivity: 0.013Lux (color), 0.002Lux(B/W ICR On) with 50IRE
    • Electronic shutter speed: 1/1 ~ 1/10,000 sec
    • Privacy masking: 8 regions
    • Flip mode: Horizontal, Vertical
    • Image enhancement: AE, AWB, AGC, TDN, DNR, BLC, WDR, DSS, Defog, Color Enhancement
  • Video:
    • Compression: H.264, MJPEG
    • Bitrate: Primary: 32Kbps ~ 16Mbps, Secondary x3: 32Kbps ~ 4Mbps Resolutions: 352x240 ~ 1920x1080
    • Frame Rate: Max 60fps @ 1920x1080
    • Output: Direct 3G-SDI live view
    • Streaming: Primary: H.264, Secondary x 3: H.264/MJPEG
    • Burn-in OSD: Multi-lingual
    • Output: 3GSDI - Low Latency Live Output
  • Audio:
    • Compression: G.711 / AAC
    • Sample Rate: G.711: 8 KHz, AAC : 32 kHz / 44.1 kHz / 48 kHz
    • Bitrate: G.711: 64Kbps, AAC: 64Kbps/128Kbps
    • Streaming: G.711: Full-duplex, AAC: Half-duplex
    • Input / Output: 1 x Line-In (stereo, RCA type), 1 x Line-Out (stereo, RCA type)
  • Event:
    • Event sources: Motion, Sensor input, Client disconnection
    • Event actions: Notification (E-mail), FTP, PTZ preset, Alarm control, Recording
  • General:
    • Housing: IP67
    • Certifications: CE, FCC, KC, RoHS
    • External devices:
    • 2 x Sensor-In (dry contact, NO/NC)
    • 2 x Alarm-Out (dry contact, NO)
    • 1 x RS-485 port: Direct PTZ control etc
    • Edge storage: Micro SD
    • Power supply: Min 12V/3A, Min 24V//3.5A, PoE+ (Power over Ethernet): 802.3at
    • Power consumption: DC12V/PoE+: Max 30W, AC24V: Max 48W
    • Operating Temperature: -10°C ~ 50°C ( 14°F ~ 122°F ) / 20% ~ 80% RH
    • Dimensions: Dome: Ø148 mm/ Ø 5.8"
    • Weight: 3,020g (Housing Net: 3,440g) / 6.66 lbs (Housing Net: 7.58 lbs)
