ADJ Flash Kling Panel 8x8 64 RGB LED Pixel Matrix Panel

OUR PART #: FLASH-KLING-PANEL MFR #: FLA472

Copied to clipboard

This ADJ FLASH-KLING-PANEL LED Pixel panel for low resolution video displays offers 64 x SMD RGB LED’s (8x8 Matrix Configuration), a 120° beam angle, and is Kling Net & Art-Net compatible. ... ...Read more

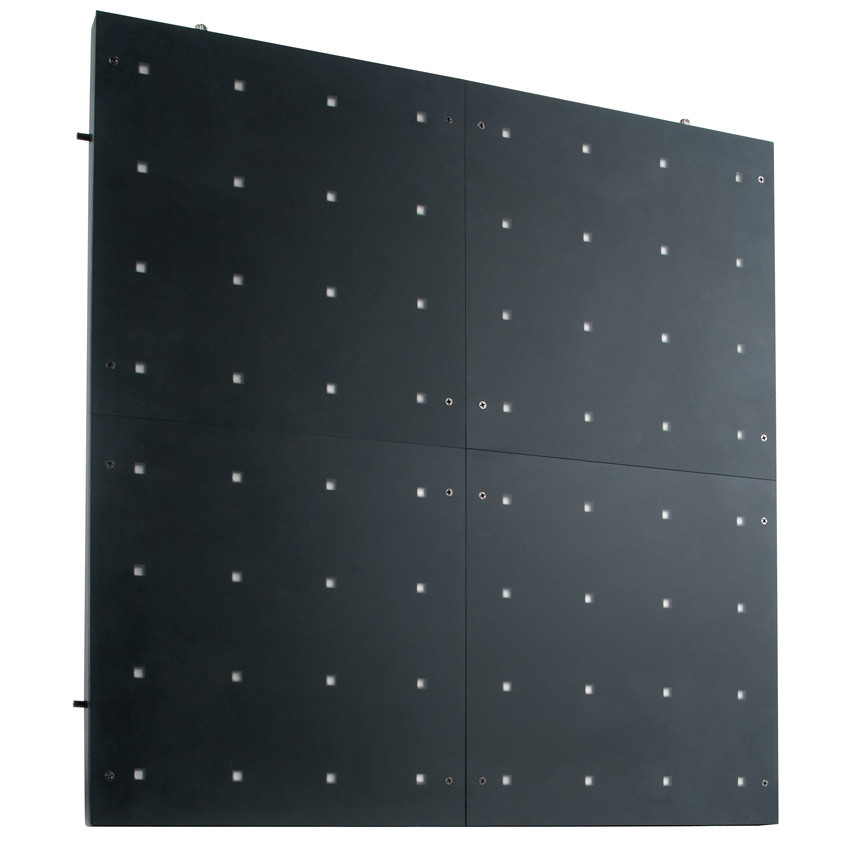

ADJ Flash Kling Panel 8x8 64 RGB LED Pixel Matrix Panel Image 1
ADJ Flash Kling Panel 8x8 64 RGB LED Pixel Matrix Panel
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

This ADJ FLASH-KLING-PANEL LED Pixel panel for low resolution video displays offers 64 x SMD RGB LED’s (8x8 Matrix Configuration), a 120° beam angle, and is Kling Net & Art-Net compatible.

ADJ Flash Kling Panel Specifications:

  • Light Source: 64 x 0.164W, SMD RGB LEDs, (Rated at approximately 50,000 hours)
  • Operational Mode: KlingNet and ArtNet compatible. Recommended control solutions; Arkaos Media Master Express, Media Master Pro and LED Master software’s (sold separately)
  • Beam Angle:120°
  • Luminance: N/A
  • Kling Net Control: Yes
  • Art-Net Control: Yes
  • RJ45 Connection: Yes In/Out
  • DMX Connections: No
  • Dimming: Electronic 0-100% (via software)
  • Flicker Free: Yes
  • Shutter / Strobe: N/A
  • Strobe Rate: N/A
  • Sound Active: No
  • Power Connection: IEC AC In/out
  • Input Voltage: AC 100V-240V 50/60Hz
  • Power Consumption: 20W (Full on)
  • RJ45 Link: Up to 50 Flash Kling Panel 64’s
  • Dimensions: 19.75” x 19.75” x 2.5” (500 x 500 x 63mm)
  • Weight: 12 lbs (5.6 kgs)
  • Optional Accessories: FKP100 (Panel lock to interlock with other FlashKling Panels and FKP200); FKP200 (Single panel, rigging bar for FlashKling Panel)
