Beyerdynamic TG 100 Handheld Set
8-Channel VHF Wireless Handheld Microphone System, 174 - 184 MHz

OUR PART #:

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

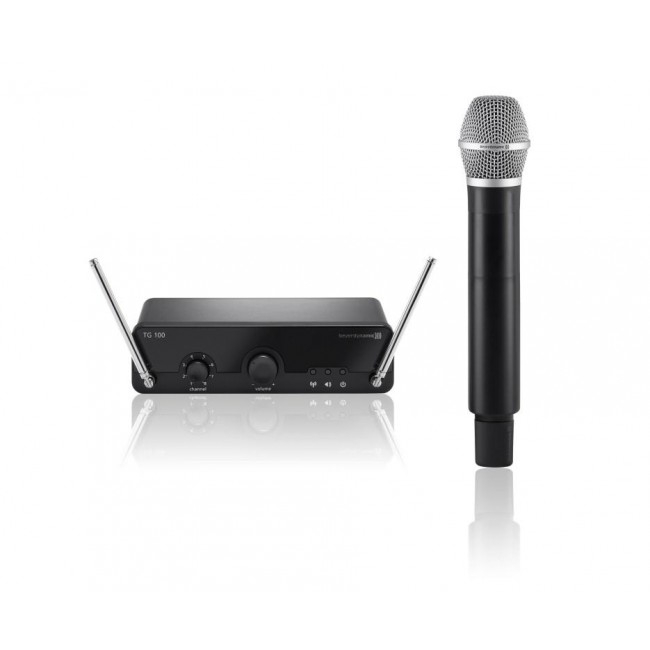

The Beyerdynamic TG 100 Handheld Set is an 8-channel VHF wireless handheld microphone system which features a pilot tone function which prevents noise and assures user-friendly handling. Speech clarity combined with user-friendly handling and improved protection against interference makes the TG 100 Beltpack Set a handy all-round wireless system. Developed for smaller sound installations as well as for ambitious hobby musicians the TG 100 wireless system is equally adept to both speech and singing.

Live show or band practice, the handheld transmitter containing a professional dynamic microphone capsule meets all needs. The handheld set is the perfect stage tool for ambitious hobby musicians and offers the necessary flexibility for any kind of performance.

Beyerdynamic TG 100 Handheld Set Includes:

  • One (1) TG 100R Receiver
  • One (1) TG 100H Handheld Dynamic Microphone Transmitter
  • One (1) Power Supply for TG 100R
  • Two (2) AA Batteries for TG 100H

Beyerdynamic TG 100 Handheld Set Features:

  • Pilot Tone Function:  The pilot tone prevents noise and assures user-friendly handling. The TG100 wireless system uses the pilot tone to identify a correct signal for improved interference-free transmission and to transmit a low battery warning as well as the audio mute information to the receiver.
  • Sound Switch:  The integrated sound switch equally improves the clarity of speech and vocals without the need for a mixing console.
  • Professional Diversity Receiver:  The professional diversity receiver ensures best signal reception even in a complex environment.
  • 10 Hour Battery Operation:  With a battery operation of 10 hours there is no need for concern regarding extensive encores or long-lasting events.

Beyerdynamic TG 100 Handheld Set Specifications:

  • TG 100R VHF Diversity Receiver:
    • Operating Principle:  Diversity Receiver
    • Frequency Range:  Band 1 = 174 - 184 MHz
    • Frequency Response:  100 Hz - 16 kHz
    • Dynamic Range:  112 dB
    • Output Level:  Max. 0 dBV (XLR and jack output)
    • Mains Connection:  100 V - 240 V AC; 12V DC power supply unit
    • Power Consumption:  150 mA
    • Ambient Temperature:  0 to +55 °C
    • Weight:  250 g
    • Dimensions:  143 x 100 x 41 mm
    • Antenna Connection:  2 x telescopic, permanently attached antennae
  • TG 100H Handheld Transmitter:
    • Frequency Range:  Band 1 = 174 - 184 MHz
    • Frequency Response:  100 Hz - 16 kHz
    • Dynamic Range:  112 dB
    • RF Power:  < 10 dBm
    • Transmission Range:  Up to 100 metres under optimal conditions
    • Operating Time:  Approx. 8 hrs. (2100 mAh)
    • Weight:  200 g without batteries
    • Dimensions:
      • Length:  254 mm
      • Shaft ø:  36 mm
      • Microphone Grille ø:  50 mm
