Product Overview

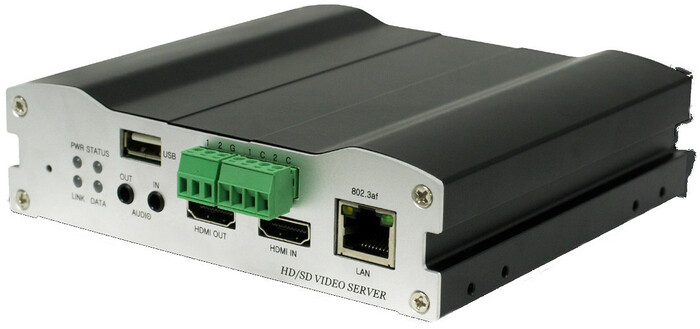

The Marshall Electronics VS-103E-3GSDI is a1080p60 Full HD video encoder that encodes 2 channels of embedded audio from an HDMI or HDSDI input. Power supply is included.
The VS-103E-3GSDI supports 1920/1080/60fps resolution, has 3G-HD/SD-SDI, HDMI and compositve video inputs, offers dual streaming (H.264/H.264, H.264/MJPEG), and supports MPEG2-TS. Additional features include two-way audio communications (G.711, AAC), support for over 30 types of PTZ protocol, ONVIF and PSIA compliance, and HD/ SD-SDI, HDMI & analog input audio.
Marshall Electronics VS-103E-3GSDI Features:
- Encodes 2 channels of Embedded Audio from HDMI or HDSDI input
- PoE (Power Over Ethernet 802.3af)
- USB Recording
- Watchdog for System Recovery
- RS-232, RS-422/485 Communication
- Motion Detection
- 2-channel Sensor Input / 2-channel Alarm Output
- Adjustable Video Bitrate: 32Kbps ~ 16Mbps for Primary Video, 32Kbps ~ 1Mbps for Secondary Video
- Adjustable Video Data Bandwidth: 2,400bps ~ 115,200bps
- Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
- Full Technical Support with SDK & API
Marshall Electronics VS-103E-3GSDI Specifications:
- Encoding Mode: Normal / MPEG2-TS mode
- Network Interface: Ethernet 10/100Base-T (RJ-45)
- Network Protocol: TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, HTTPS, SNMP, RTP, RTSP,PSIA, ONVIF
- Video:
- Compression: Main Stream: H.264 Secondary Stream: H.264 / MJPEG
- Data Rate: 32Kbps ~ 8Mbps
- Resolution: 1920x1080/p60 ~ 352x240/30fps, 18 resolution step
- PC Resolution: HDMI Input format: 800 x 600, 1280 x 1024, 1440 x 900, 1440 x 900
- Input 1: 1 xHDMI type A, HDMI RX
- Input 2: 1x Composite (BNC Type)
- Input 3: 1x HD/SD-SDI (BNC Type) – (VS-103E-3GSDI only)
- Motion Detection: Sensitivity Adjustable
- Audio:
- Compression: G.711 , AAC
- Sample Rate:
- Data Rate:
- G.711: 64Kbps
- AAC: 64Kbps, 128Kbps
- Input: 1x Line-In (3.5mm Stereo) 2 channels of Embedded Audio
- Output: 1x Line-Out (3.5mm Stereo)
- Serial Port 1: 1x RS-232 (Terminal Block)
- Serial Port 2: 1x RS-422-485 (Terminal Block)
- Data Rate: 2,400 bps ~ 115,200 bps
- Sensor Input: 2x NO Contact (Terminal Block)
- Alarm:
- Output: 2x NO Contact (Terminal Block)
- Audible Beep: 1x Buzzer 88dB Min
- Reset Button: 1x Factory Reset Button
- System Status: LED
- Recording/Backup: 1x USB 2.0 Port
- Authentification: 4 levels of user authentification, IP address Filtering, HTTPS Encryption
- VMS 16 Included: 16 channels of Recording & Live Monitoring with Search & Playback
- Dimensions: 5.28" W x 4.954" D x 1.45" H (134.08 x 125.5 x 36.87 mm)
- Weight: 1.11 lbs (504g)
- Power Source: DC 12V/0.8A, PoE (Power over Ethernet): 802.3af
- Power Consumption: Max 9.6W
- Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C)
