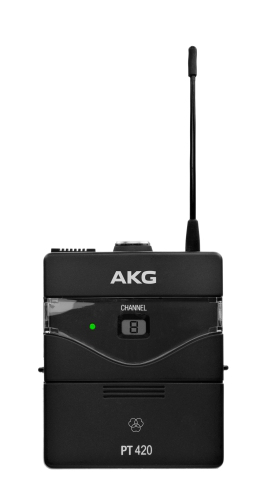

AKG PT420 Band A 420 Series Wireless Bodypack Transmitter

The AKG PT 420 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms.

The PT 420 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.

AKG PT 420 Features:

• Integrated charging contacts (Optional Accessory: CU400) saves money in day-to-day use and preserves the environment
• Compatible with all AKG MicroMics: Allows the transmitter to be used in a wide range of applications
• Up to eight hours with a single AA battery: Long operation time and a low battery indicator guarantee a secure operation
• Noiseless on/off/mute switch for easy operation
• Gain control on transmitter for immediate volume adjustment

AKG PT 420 Specifications:

• Audio:
  • Audio Frequency Bandwidth: 40 Hz - 20 kHz
  • Signal to Noise: 105 dB-A
  • THD at 1 kHz: 0.8%
  • Pocket Transmitter Synchronization: Manual
• Audio Input:
  • Type: Mini XLR
  • Gender: Female
  • Contacts: 3-pin
  • Maximum Audio Level: 12dB dB
  • Rated Impedance: 1000 Ohms
• Battery 1:
  • Battery Type: LR6 AA alkaline battery
  • Number of Batteries: 1
  • Operating Time: Up to eight hours with one AA battery h
• Battery 2:
  • Battery Type: HR 6 AA (NiHM) rechargeable battery
  • Number of Batteries: 1
  • Operating Time: Up to eight hours with one AA battery h
• Dimensions:
  • Length: 60 mm
  • Height: 75.5 mm
  • Width: 30 mm
• Net Weight: 214 g
