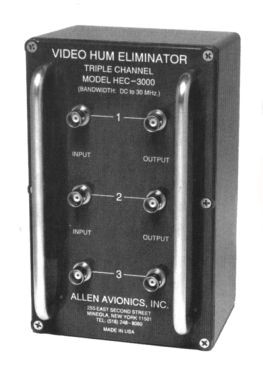

Allen Avionics HEC3000
3-Channel Video Hum Eliminator

OUR PART #:  HEC3000

Eliminates hum and other interference in video lines. Perfect for all rRGB applications. High isolation between channels.
Learn More
Our Price: $393.90
List Price: $400.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen Avionics HEC3000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Eliminates hum and other interference in video lines. Perfect for all rRGB applications. High isolation between channels. Can be used as three single channel units with no loss of performance.

Allen Avionics HEC3000 Applications:

  • Field
    • Between Remote Truck, Telco & Microwave
    • For Intertruck Hookup
    • For VTR Units
    • For Monitoring Lines
  • Studio
    • Between Buildings
    • On Long Runs in Buildings
    • Between Studios & Transmitters
    • On Incoming & Outgoing Telco Circuits

Allen Avionics HEC3000 Features:

  • Flat Response
  • Bandwidths up to 30MHz
  • No Low or High Frequency Roll-Off
  • No Differential Gain or Phase Distortion
  • Rugged, Waterproof Case
  • BNC Connectors
  • Passive Device - Failure Free
  • For Color and Black & White
  • Reversible
  • Small, Compact Package

Allen Avionics HEC3000 Specifications:

  • Impedance: 75 (Ohms) Unbalanced
  • Bandwidth:
    • DC to 30MHz:
      • 0.75dB @ 10MHz.
      • 1.20dB @ 20MHz.
      • 1.50 dB@ 30MHz.
  • Hum Reduction:   60dB for 50 Hz. or 60Hz. hum, Depending on system
  • Package: Die Cast Metal
  • Mounting: Four (4) 6-32 x 1/2" Inserts
  • Dimensions: H: 7-7/16" x W: 4-3/4" x D: 3-1/16"
  • Weight: 6 Lbs.
  • Insertion Loss: 0.2dB max.
  • Return Loss: 20dB min.
  • Isolation Between Channels: 70dB (Typical)
