Product Overview

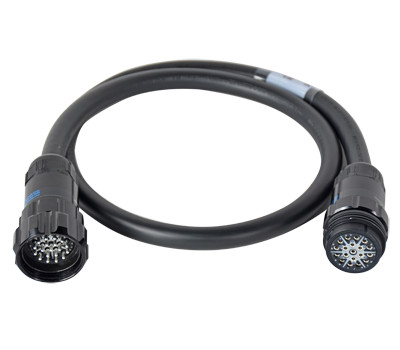

20 Amp, 6-Circuit, 300 VAC, 12 AWG, 14 conductor multi-cable with LSC19 machined aluminum connectors, ground conductors bonded. Multi-cable carries 6-circuits of lighting power inside a single jacket, saving six individual runs of cable.
Lex ME1214-10-L Applications:
- Motion Picture and Television Production
- Theatrical Production
- Concert Touring
- Live Events
- Convention Centers
Lex ME1214-10-L Features:
- Cables feature proprietary LSC19 6-circuit lighting connectors with 12 interlocking keys to help prevent spinning of the interior within the male and female housing
- Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections
- Helps prevent broken conductors and loose or damaged ground rings
- “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections
- Machined aluminum housing with hard black anodized finish provides maximum durability
- Silver plated brass contacts for high conductivity
- Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
- All black construction blends into scenery and is ideal for stage or studio lighting applications
Lex ME1214-10-L Specifications:
- Rating: 20 Amp, 300 VAC maximum (6-circuit)
- Maximum when used with 50% diversity of load (in accordance with table NEC 520-44).
- Ground Conductors Bonded: Six ground contacts are combined through the use of a ground ring to two ground conductors.
- Male Connector: LSC19-LMC-29
- Cable Gauge: 12 AWG, 14 conductor TPR
- Female Connector: LSC19-LFC-29
