Datavideo Corporation PCRM-350HD
1RU HD/SD Character Generator Workstation with Decklink HD Extreme 4K Card

OUR PART #:  PCRM350HD

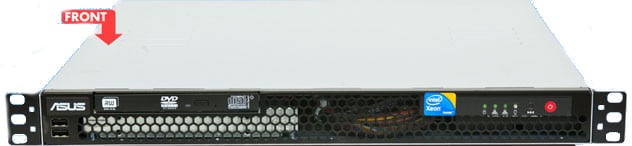

The Datavideo PCRM-350HD is a Character Generator Workstation that take up only 1RU space.
Learn More

Call for price! Not available online.
List Price: $5,800.00

Similar Products

The Datavideo PCRM-350HD is a Character Generator Workstation that take up only 1RU space. The complete system comes bundled with all the necessary software and hardware to add CG capabilities to your mobile production studio. In addition, the PCRM-350 comes pre-configured with the Decklink HD Extreme 4K Card, which features Downstream Keying, Upstream Keying, and Key & Fill.

The installed CG-350 Software in the PCRM-350HD includes basic text functions, plus some extra useful features like banner crawls and Snyper (corner graphics, station IDs, "coming up next" animations, etc.) that can appear separately from the main CG actions. What this means is you can set continuously-looping banner crawls and/or corner graphics while you control the timing of the other CG elements independently.

Datavideo PCRM-350HD Features:

  • DeckLink Card - PCRM-350 comes with DeckLink HD Extreme™ 4K Card
  • Banner Crawl - The PCRM-350 features continuously-rolling text crawls, corner graphics, and animations over your outgoing program.
  • Gradient Support - Create smooth gradients between any 2 colors in the characters, edges, shadows, and shapes.
  • Custom Texture Support - Character attributes can be drawn with custom textures (marble, wood grain, etc). (Up to 16 textures/page)
  • 1,000 Layers - Text, logos, and shapes can be placed on multiple layers, each independent of the others. Layers can be named.
  • Many Formats Supported - Support for BMP, JPG, GIF, PCX, TIF and TGA images.
  • Text-Style Gallery - One button access to your 64 user-defined text styles.
  • True Type - Typefaces – each page can use up to 25 Truetype different typefaces.
  • Independent Lettering - Character height, width, angle and rotation all customizable, and independent from letter to letter.
  • Variable Blurring - Variable character and edge blurs, independent of each other.
  • SDK Buildable - The installed CG-350 software’s SDK allows you to create a direct interface to the software.

Datavideo PCRM-350HD Specifications:

  • Hardware System:
    • Size: 1RU / 19" W x 15" D x 2" H
    • Processor: Intel I5 or Faster
    • RAM: 4GB or More
    • Operating System: Windows 7
    • Video Card: 32-bit Color VGA, XGA, or Better
    • CG Software: CG-350 (installed)
    • Decklink Card: Decklink HD Extreme 4K (installed)
      NOTE: System specifications may change, without notice, depending upon the card used. Please call us to find out the latests hardware specifications we are using.
  • Additional CG Specs:
    • Resolutions: Support for resolutions from 320×240 to 1080i HD
    • DSK: Supports both downstream keying (DSK) and key & fill. Please note: Key and fill is only available via SDI or HDSDI.
    • Characters: Anti-aliased characters with leading, kerning and tracking, with two edge and three shadow styles for each character.
    • Color Support: 32-bit color support (with transparency). Color can be selected by adjusting RGB or HLS levels.
    • Shapes: Up to 32 shapes per page. Each shape can be set to a solid color, semi-transparent color, a color gradient, or a texture. The shapes can be edged, colored, sized, italicized, and rotated just like text characters.
    • Logos: Up to 16 full-color logos can fine-positioned, overlapped, sized, etc. just like characters.
  • CG-350 Sub-Programs:
    • Display List Editor: Used to create and edit the list of images. Drag and drop your pages from the Title, Animation or Graphic Catalogs onto the Display List and create your playback sequence with ease.
    • Preview Window: Next screen preview allows you to preview any particular page without going live with it.
    • Media Catalogs: Information is organized into Title, Animations, and Graphic Catalogs.
    • Title Catalog: Shows all your static text pages
    • Animation Catalog: Shows pre-rendered text and shape animations
    • Graphic Catalog: Shows non-CG graphic images
    • Title Composer: Create static and animated title pages using editable text, layers, graphic placements and shapes.
  • Decklink Extreme HD 4K Specifications:
    • Video Inputs: 2x HD/SD-SDI
    • Video Outputs: 2x HD/SD-SDI, 1x HDMI
    • Supported Formats: NTSC, PAL, 720p, 1080i, 1080p
