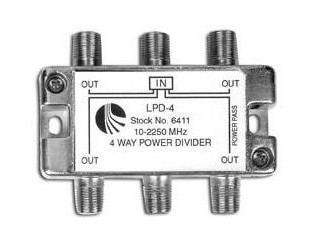

Blonder-Tongue LPD-4
4-Way Splitter

OUR PART #:  LPD4

Blonder Tongue's LPD Series are precision 2 GHz passives designed for L-Band distribution systems requiring high frequency, high performance components.
Learn More
Our Price: $8.90
List Price: $9.11
Write the first review.
Blonder-Tongue LPD-4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Blonder Tongue's LPD Series are precision 2 GHz passives designed for L-Band distribution systems requiring high frequency, high performance components. The LPD Series consists of 2, 3, 4, 6 and 8 way splitters. Models are available with either a single power passing port or with all ports power passing (diode steered, out to in).

Blonder-Tongue LPD-4 Features:

  • Professional Trunk Grade
  • 10-2150 MHz Bandwidth
  • Gold Plated F Connector Siezure Pins
  • Zinc Die Cast Hybrid Case

Blonder-Tongue LPD-4 Specifications:

  • Description: 10-2150 (MHz), 1 Port Power Pass
  • Frequency Range (MHz): 10 - 40, 40 - 806, 950 - 1450, 1450 - 2150
  • Input Return Loss (dB):
    • 10 - 40: 8
    • 40 - 806: 10
    • 950 - 1450: 10
    • 1450 - 2150: 10
  • Output Return Loss (dB):
    • 10 - 40: 8
    • 40 - 806: 10
    • 950 - 1450: 10
    • 1450 - 2150: 10
  • Insertion Loss (dB):
    • 10 - 40: 7.8
    • 40 - 806: 7.5
    • 950 - 1450: 9
    • 1450 - 2150: 9.5
  • Out-Out Isolation (dB):
    • 10 - 40: 22
    • 40 - 806: 25
    • 950 - 1450: 22
    • 1450 - 2150: 20
