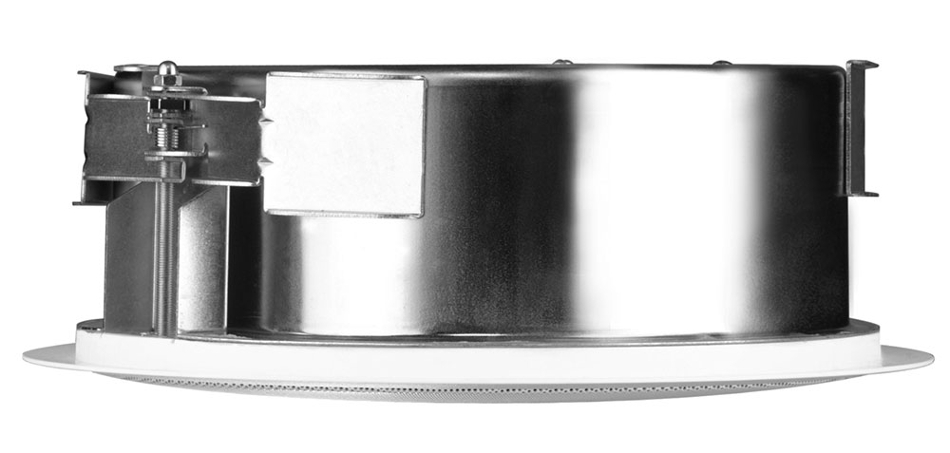

SoundTube CM62-EZs-II
6.5" Coaxial In-Ceiling Speaker with Shallow Backcan and 70/100V or 16 Ohm Operation in White

OUR PART #  CM62-EZS-II-WH

Call for price! Not available online.


The Soundtube CM62-EZs-II is engineered for applications with limited plenum space, incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5 inches. One 6.50 in (165.0 mm) treated fiber woofer with cloth surround and one 1.00 in (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 90.5 dB sensitivity and 16 ohm impedance. Superior voice intelligibility with a 10 kHz coverage angle of 80° (independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a trans former. Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to material thicknesses ranging from 0.04 inch (0.9 mm) – 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. Included accessories: Tile bridge, UL-listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.

Soundtube CM62-EZs-II Specifications:

  • Low Frequency (-10 dB):  75 Hz – 22 kHz
  • Sensitivity:  90.5 dB
  • Power Capacity RMS:  50 W
  • Max SPL dB @ 1 M:  107.5 dB
  • Nominal Impedance:  16 Ohms
  • Transformer Options:
    • 25 / 70.7 / 100 Volt
    • 16 Ohm direct
  • Tweeter:  1" Silk
  • Woofer:  6.5" Treated fiber
  • Connections:  4 position ceramic terminal strip
  • Visible Height:  0.34 in (8.6 mm)
  • Visible Diameter:  11.75 in (298.5 mm)
  • Backcan Height:  3.75 in (95.3 mm)
  • Backcan Diameter:  9.67 in (245.6 mm)
  • Weight:  7.0 lbs (3.2 kg)
  • Optional Accessories:
    • Color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB)
    • Junction box (AC-CM-EZ-JBOX)
  • Color:  White

SoundTube CM62-EZs-II
6.5" Coaxial In-Ceiling Speaker with Shallow Backcan and 70/100V or 16 Ohm Operation in White

OUR PART #  CM62-EZS-II-WH

Product Information:

The Soundtube CM62-EZs-II is engineered for applications with limited plenum space, incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5 inches. One 6.50 in (165.0 mm) treated fiber woofer with cloth surround and one 1.00 in (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 90.5 dB sensitivity and 16 ohm impedance. Superior voice intelligibility with a 10 kHz coverage angle of 80° (independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a trans former. Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to material thicknesses ranging from 0.04 inch (0.9 mm) – 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. Included accessories: Tile bridge, UL-listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.

Soundtube CM62-EZs-II Specifications:

  • Low Frequency (-10 dB):  75 Hz – 22 kHz
  • Sensitivity:  90.5 dB
  • Power Capacity RMS:  50 W
  • Max SPL dB @ 1 M:  107.5 dB
  • Nominal Impedance:  16 Ohms
  • Transformer Options:
    • 25 / 70.7 / 100 Volt
    • 16 Ohm direct
  • Tweeter:  1" Silk
  • Woofer:  6.5" Treated fiber
  • Connections:  4 position ceramic terminal strip
  • Visible Height:  0.34 in (8.6 mm)
  • Visible Diameter:  11.75 in (298.5 mm)
  • Backcan Height:  3.75 in (95.3 mm)
  • Backcan Diameter:  9.67 in (245.6 mm)
  • Weight:  7.0 lbs (3.2 kg)
  • Optional Accessories:
    • Color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB)
    • Junction box (AC-CM-EZ-JBOX)
  • Color:  White
