Neutrik NADB15MF-B
15-Pin D-SUB Male to Female Feedthrough with Black Housing

OUR PART #:  NADB15MF-B

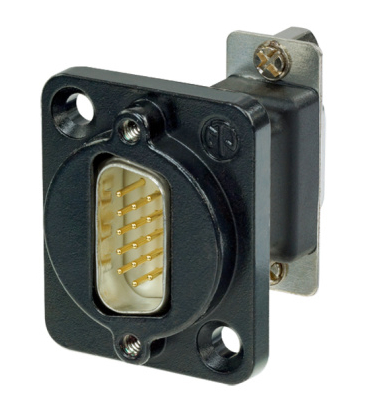

The Neutrik NADB15MF-B is a 15-pin D-SUB male to female feedthrough with a black D-shape housing.
Learn More
Sale Price: $20.00
List Price: $31.59
Save up to 39% when you order by quantity!
  • Buy 100: $19.30 each.
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NADB15MF-B
Qty:
Similar Products

The Neutrik NADB15MF-B is a 15-pin D-SUB male to female feedthrough with a black D-shape housing. This feedthrough is ideal for audio networking and integration of equipment into video systems.

Neutrik NADB15MF-B Specifications:

  • Electrical:
    • Contact Resistance:  10 Megohms (inner)
    • Dielectric Strength:  1 kVdc
    • Insulation Resistance:  >/= 5 Gigohms
    • Number of Electronical Contacts:  15
    • Rated Current per Contact:  5 A
    • Rated Voltage:  125 V AC
  • Mechanical:
    • Wiring:  Feedthrough
    • Chassis Shape:  D
  • Material
    • Contact Plating:  Au
    • Contacts:  Brass (CuZn39Pb3)
    • Insert:  Steel , tin plated, PBT
    • Shell:  Zinc diecast (ZnAl4Cu1)
    • Shell Plating:  Black chromium
  • Environmental:
    • Flammability:  UL 94 V-0
    • Temperature Range:  -25°C to +85°C
