Electro-Voice EVF-1122S 94
12" 2-Way Full-Range Installation Loudspeaker with 90°x40° Dispersion

OUR PART #:  EVF-1122S/94-BLK

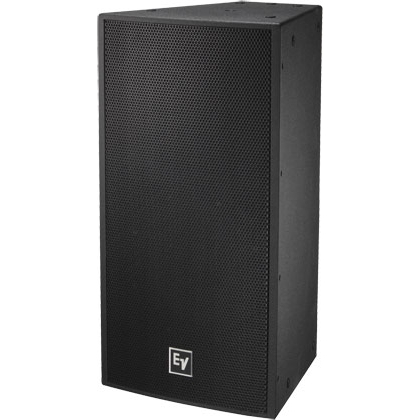

The Electro-Voice EVF-1122S 94 trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements.
Learn More
Our Price: $1,867.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF-1122S 94
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Electro-Voice EVF-1122S 94 trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Electro-Voice EVF-1122S 94 Features:

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60º to 120º
  • 98 dB sensitivity, 131 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Electro-Voice EVF-1122S 94 Specifications:

  • Environmental Specs:  Standard versions: IEC 60529 IP44
  • Input Connections:  Phoenix/Euroblock style screw terminals
  • Frequency Response (-3 dB):  58 - 16000 Hz
  • Frequency Response (-10 dB):  49 - 19000 Hz
  • Recommended High-Pass Frequency:  65 Hz
  • Sensitivity 1 W/1 m:  98 dB
  • Max. SPL/1m (calc):  131 dB
  • Coverage (Nominal -6 dB) H:  90°
  • Coverage (Nominal -6 dB) V:  40°
  • System Power Handling (Continuous/Program/Peak):  500/1000/2000 Watts
  • LF Transducer:  SMX2121, 12 in (305mm) Driver
  • HF Transducer:  ND2B, 2 in (51 mm) Diaphragm Compression Driver
  • Crossover Frequency:  1450 Hz
  • Nominal Impedance (Passive):  8 Ohms
  • Minimum Impedance:  6 Ohms
  • Enclosure Material:  13 Ply Weather Resistant Birch
  • Grille:  Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind
  • Suspension:  (22) M10 Threaded Points
  • Dimensions (HxWxD):  30.26" x 16" x 16.27" (768.6mm x 406.3mm x 413.3mm)
  • Weight:  63.05 lbs (28.6 kg)
