Altman GC-3-3
3 Section, 3 Circuit Ground Cyc Light

OUR PART #:  GC-3-3

The Altman GC-3-3 Ground Cyc is multi-lamp, compartmented luminaire designed to provide an even wash of light on cycloramas from a ground row position.
Learn More
Selected Model Price: $712.00
List Price: $890.00
Save up to 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Altman GC-3-3
Select a Model: (shipping times are approximate)

Similar Products

The Altman GC-3-3 Ground Cyc is multi-lamp, compartmented luminaire designed to provide an even wash of light on cycloramas from a ground row position.  The luminaire is available in one lamp through twelve lamp configurations with single to twelve circuit wiring.  Lamps are on nine inch centers.  Typically, each compart- ment provides an asymmetrical distribution with a 50° beam angle, 70° field angle horizontally and a 65° beam angle, 83° field angle vertically.

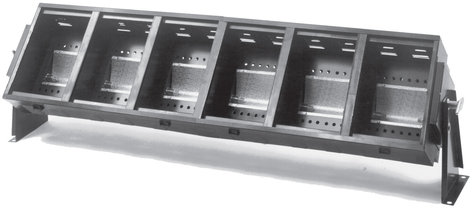

NOTE: 5 section version shown above in lieu of an available photo of the 3-section version that is sold on this page.

Altman GC-3-3 Ground Cyc Features:

  • Die-cast and sheet steel construction
  • Asymmetrical distribution for even cyc washes
  • Compartmented for color separation
  • Porcelain recessed single contacts on 9" centers
  • Spring loaded color frame retainers
  • Floor trunnions, color frames, and safety cable with spring clip included
  • Safety screen(s) included
  • U.L. and c.U.L. listed for 1000 watt lamps
  • Made in the USA

Altman GC-3-3 Ground Cyc Specifications:

  • Housing: Die-cast aluminum and 20 gauge sheet steel.
  • Materials: Construction employs all corrosion-resistant materials and hardware.
  • Reflectors: Peened specular aluminum.
  • Socket: Recessed single contact, two provided. Tool free relamping.
  • Rating: 120/240 volts AC/DC operation, 8.3/4.2 amps,1000 watts maximum.
  • Cable: 36" Teflon and/or silicone-fiberglass leads encased in black fiberglass sleeving.
  • Safety Screens: Stainless steel, one provided with each section.
  • Trunnions: Rigid 16 gauge steel, two mounting positions.
  • Hanging Arms: 3/16" strap steel, five mounting positions.
  • Hanging Chain: 40" 2/0 zinc plated bowtie chain. One length per 5ft provided for units over 10ft in length.
  • Finish: Baked black enamel, for GC-5 thru GC-12.  Black epoxy sandtex, electrostatic application for GC-1 thru GC-3.
  • Weight: Approx; 13 1/2 lbs. (5.9 kg.) per foot.
