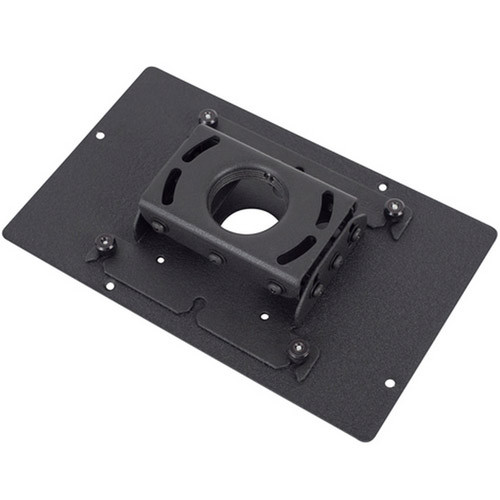

Chief RPA318 Custom RPA Projector Mount

The Custom RPA Projector Mounts can be ordered to fit any projector for a quick and easy install.

Chief Manufacturing RPA318 Features:

• Ships with custom interface bracket to fit your specific projector
• Independent roll, pitch and yaw for quick and precise projector image registration
• Quick projector connect and disconnect with convenient lamp and filter access on most projectors
• Maintains registration when disconnected and doesn't affect preset adjustments
• All-Points™ Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
• Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
• Integrated cable management through top of mount without additional accessories

Chief Manufacturing RPA318 Specifications:

• Adjustments:
  • Roll: 4°
  • Pitch: 25°
  • Yaw: 360°, 12° on flush mount
• Color: Black
• Overall Dimensions (H x W x D): 1.8" x 6.5" x 5.5" (44 x 165 x 140 mm)
• Shipping Weight: 6.07 lbs
• Solution Type: Custom
• Weight Capacity: 50 lbs (22.7 kg)
