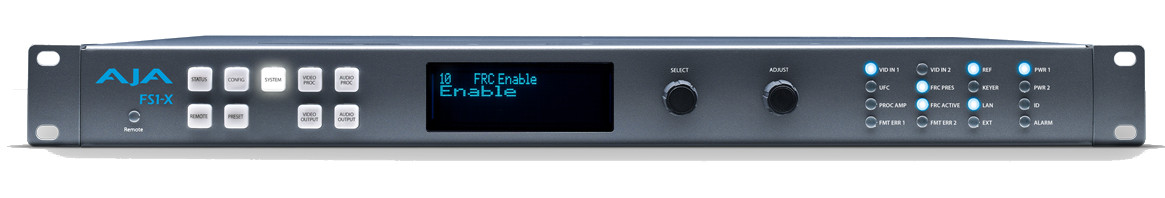

AJA Video Systems Inc FS1-X-FRC
Frame Synchronizer & Converter with MADI & FRC

OUR PART #:  FS1-X-FRC

Advanced frame synchronizer and up, down, cross-conversion with 64-channel MADI audio support...
Learn More
Our Price: $4,995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc FS1-X-FRC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Advanced frame synchronizer and up, down, cross-conversion with 64-channel MADI audio support, high-quality, motion adaptive linear Frame Rate Converter and extensive video and audio I/O supporting both digital and analog.

AJA FS1-X-FRC Features:

  • Incredible frame rate conversion: Matching up andsynchronizing disparate video and audio formats is a critical part of anybroadcast, mobile or post-production environment. With the factory-installedmotion adaptive Frame Rate Converter (FRC) option, FS1-X creates incredible,high-quality conversions between different frame rate families for virtuallyunlimited international standards support.
  • Massive audio flexibility: The growth of 5.1 and 7.1audio has increased the number of audio channels that must be managed in aproduction. The MADI standard provides a convenient way to transport hugenumbers of audio channels along a single cable, simplifying the cablingdemands for broadcasters, mobile trucks and production. FS1-X supports bothfiber and coax 64-channel MADI input and output. An internal 224x224 audiomatrix allows full routing of MADI and all audio coming from SDI, fiber, AESand analog sources for an incredible amount of audio processing capability ina single box.
  • High-quality conversion: AJA’s hardware conversiontechnology ensures the highest image quality for your productions.
  • Key conversion features include:
    • SD/HD up, down-conversion
    • SD/SD aspect ratio conversion
    • HD/HD cross-conversion (720p/1080i)
    • Up, down, cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)
    • HD cross-conversion with simultaneous down-converted SDI output
    • Closed Caption conversion (CEA-608/CEA-708 standards)
    • AFD conversion or pass-through (user-selectable)
  • Sidebar Keying: FS1-X features a unique keyerconfiguration, allowing incoming signals to be combined in powerful ways. Acommon example is sidebar keying, where incoming video is converted from SD toHD but rather than stretching the 4:3 aspect ratio to fit in a 16:9 frame, asecond signal is used to fill the sides of the 16:9 frame. This allows channelidentification or other imagery to be placed in that area rather than havingblack bars on either side. The robust AFD features of FS1-X ensure that theaspect ratio of the outgoing signal is properly identified for downstreamdevices.
  • Automation: Many functions on FS1-X can be triggeredby external GPI’s such as freezing an input or switching between presets,allowing easy integration into existing systems for seamless and accurateautomation.
  • Extensive Connectivity: FS1-X is loaded withcomprehensive I/O for converting between the widest range of analog anddigital signals. Perfect for use in all broadcast and post productionenvironments, featuring 3G-SDI inputs and outputs, HDMI and optional SDI FiberI/O, comprehensive multi-channel audio connections supporting the lateststandards, and I/O for analog video equipment, including HD and SD component.
  • Remote configuration and control: FS units arenetwork ready and support SNMP monitoring and web-based remote control. Unitscan be connected to any Ethernet network via the built-in 10/100/1000 Ethernetport, allowing control and configuration of multiple FS units from any webbrowser on a connected computer. Configurations can be saved and applied tomultiple units, ensuring consistency and quick configuration in largeinstalls.
  • Architecture: FS1-X is designed to maximize flexibility while providing adependable solution that is engineered to meet the demands of broadcastengineering. Dual, redundant power supplies ensure FS1-X remains online evenin the event of a power supply failure.

AJA FS1-X-FRC Specifications:

  • Video Input Digital:
    • Dual 3G-SDI, SMPTE-259/292/296, 8- or 10-bits
    • 3G SDI Dual Link, Dual Stream, Level A or B
    • Dual Fiber (SC or LC) SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits (optional)
    • HDMI 30 bits/pixel, RGB or YUV, SD, HD, 1080p-50/60
  • Video Input Analog:
    • SD/HD component YPbPr, SMPTE-274 (3 x BNC)
    • 12-bit A/D, 2x oversampling
    • +/- .25 dB to 5.5 MHz Y Frequency Response
    • +/- .25 dB to 2.5 MHz C Frequency Response
    • .5% 2T Pulse Response
    • <2 ns Y/C delay inequity
    • SD Composite
    • 12-bit A/D, 4x oversampling
  • Video Output Digital:
    • Dual 3G-SDI, SMPTE-259/292/296, 8- or 10-bits
    • 3G SDI Dual Link, Dual Stream, Level A or B
    • Dual Fiber (SC or LC) SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits (optional)
    • HDMI 30 bits/pixel, RGB or YUV, SD, HD, 1080p-50/60 Video Output Analog
  • Video Output Analog:
    • SD/HD component YPbPr, SMPTE-274 (3 x BNC)
    • 12-bit A/D, 2x oversampling
    • +/- .25 dB to 5.5 MHz Y Frequency Response
    • +/- .25 dB to 2.5 MHz C Frequency Response
    • .5% 2T Pulse Response
    • <2 ns Y/C delay inequity
    • SD Composite
    • 12-bit A/D, 4x oversampling
  • Audio Input Digital:
    • 64-channel MADI, Coax or Fiber, 48kHz sample rate, Synchronous
    • 16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
    • 16-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (4 x BNC)
  • Audio Input Analog:
    • 8-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (25 pin “D” TASCAM connector)
  • Audio Output Digital:
    • 64-channel MADI, Coax or Fiber, 48kHz sample rate, Synchronous
    • 16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
    • 16-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (4 x BNC)
  • Audio Output Analog:
    • 8-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (25 pin “D” TASCAM connector)
  • Up-Conversion:
    • Hardware 10-bit
    • Anamorphic: full-screen
    • Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
    • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
    • Zoom Letterbox: results in image zoomed to fill full screen
    • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
  • Down-conversion:
    • Hardware 10-bit
    • Anamorphic: full-screen
    • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
    • Crop: image is cropped to fit new screen size
  • Cross-conversion:
    • Hardware 10-bit
    • 1080i to 720P
    • 720P to 1080i
    • 1080P to 720P, 720P to 1080P
  • SD to SD Aspect Ratio Conversion:
    • Letterbox: This transforms SD anamorphic material to a letterboxed image.
    • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
    • SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
    • V Crop: Will transform SD letterbox material to an anamorphicimage
  • Timecode:
    • SDI RP188 via SDI BNC
    • Reference Input:
    • Color Black, Tri-Level Sync
    • Looping, non-terminating
  • Network Interface:
    • 10/100/1000 Ethernet (RJ-45)
    • Embedded web server for remote control
    • VTECSTM protocol for Remote Control Panel
    • User Interface:
    • Alphanumeric display, with dedicated buttons
  • Control:
    • GPI in/out, 15-pin D-connector:
      • 1  GND
      • 2 GPI IN 1
      • 3 GPI IN 2
      • 4 GPI IN 3
      • 5 GPI I/O GND 1
      • 6 GND
      • 7 GPI IN 4
      • 8 GPI OUT 1
      • 9  GPI OUT 2
      • 10  GPI I/O GND 3
      • 11  GPI I/O GND 4
      • 12  GPI OUT 3
      • 13  GPI OUT 4
      • 14  NC
      • 15  GND
  • Physical:
    • Width: 17.5” (44.45cm)
    • Depth: 16” (40.65cm)
    • Height: 1RU, 1.75” (4.44cm)
    • Weight: 7.85lb (3.56kg)
    • Power: 100-240 VAC 50/60Hz (Dual, redundant power supplies), 55W typical; 80W max. 15A max.
    • Operating temperature: 0 to 40 degrees C
    • Relative humidity: 0 to 90%, non-condensing
