Juice Goose PCB1B

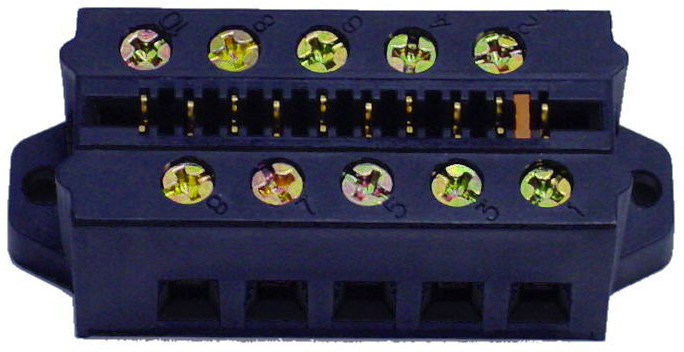

EDCO Base Card Edge Terminal Conenctor

OUR PART #:  PCB1B

The EDCO PCB1B base was designed to accommodate up to 10 AWG wire.  In addition, it offers flat / phillips terminal screws.
Learn More
Our Price: $21.00
Write the first review.

Related Products

The EDCO PCB1B base was designed to accommodate up to 10 AWG wire.  In addition, it offers flat / phillips terminal screws.  The PCB1B can be mounted using two #6 size screws.  The PCB1B is the standard socket for all of EDCO's plug-in style surge suppressor modules including the PC642, PHC, SLCP, PC2TEL, 5W8-30 and others.

Accommodates 26 to 10 AWG wires.  Ground Terminal 1 OR 10 to Building Approved Ground.  DO NOT daisy chain grounds.  NOT intended for shield termination.  Install ground in accordance with all applicable codes.
