Atlas Sound AH54-15-BSG
15" 2-Way Stadium Horn with 50°x40° Dispersion

OUR PART #:  AH54-15-BSG

The Atlas Sound AH54-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction...
Learn More
Our Price: $1,452.99
List Price: $1,816.99
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AH54-15-BSG
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

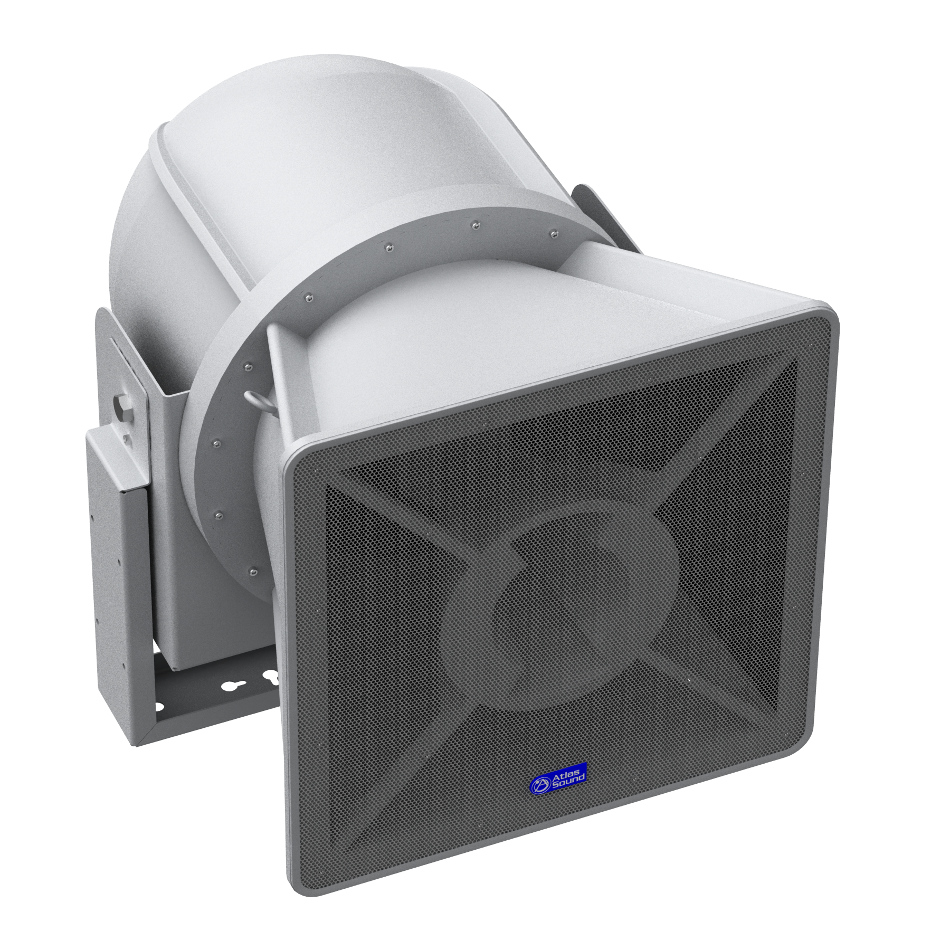

The Atlas Sound AH54-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

Weather resistant construction features of the AH54-15-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

Atlas Sound AH54-15-BSG Features:

  • Neutral Battleship Gray Finish
  • Maximum Output of 128dB (Rated Power @ 1M)
  • Heavy Duty Stainless Steel Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
  • Efficiency Rating of 104dB (1W/1m)
  • Easy, Weather Resistant Connection via a Parallel 4-Pole Terminal Block Connector
  • Constant Directivity Design Offers Controlled Coverage of 50° Horizontal by 40° Vertical (2kHz Octave Band)
  • 8 Ohms Nominal System Impedance (70.7 Volt Operation via Optional Atlas Sound Model AF140 Transformer)
  • 250 Watts Power Handling
  • Three (3) Forged Eyebolts Also Included for Suspended Installation

Atlas Sound AH54-15-BSG Specifications:

  • Power Rating:  250 Watts (53V) RMS
  • Frequency Response:  75Hz - 14.5kHz
  • Driver Type:  LF - (1) 15
  • Dispersion:  50°x40°
  • Sensitivity:  104dB SPL
  • Impedance:  8 Ohms
  • Dimensions (HxWxD):  20.5" x 20.5" x 32" (52.07cm x 52.07cm x 81.28cm)
  • Weight:  87 lbs. (39.5kg)
