Whirlwind MIP4S
Media Input Plate,Stainless


Our Price: $151.00
List Price: $216.26
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

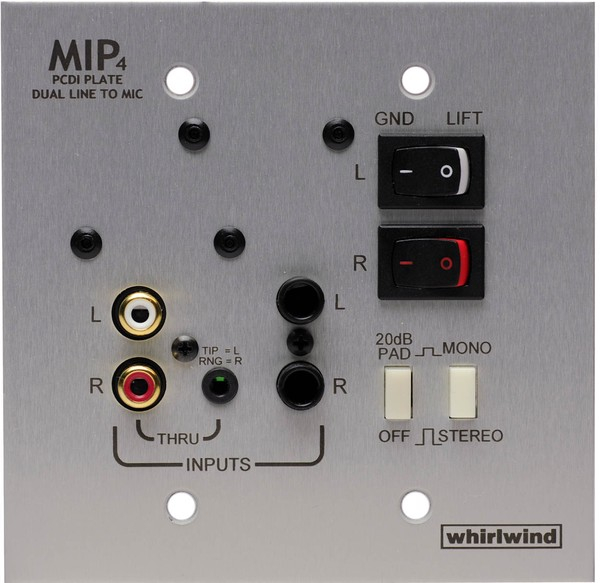

The Whirlwind MIP4S is a stainless steel wall plate version of their popular pcDI box. This wall plate is perfect for interfacing the outputs of CD players, computer sound cards, iPods/MP3 players, tape decks, etc with professional, balanced, low impedance equipement.

The MIP4S contains two separate DIs - input your signals with one 1/8" (3.5mm) mini TRS stereo jack, color coded RCA phono jacks or 1/4" TS input jacks. The RCA and 1/8" jacks are wired in parallel if a through connection is required. Outputs are on the rear via 3.5mm screw type removable plugs (Phoenix 1984329 or equivalent).

Whirlwind MIP4S Features:

  • Color coded RCA input jacks
  • 1/8" (3.5mm) input jack
  • 1/4" TS input jack
  • Ground Lift switch to help eliminate hum and buzz
  • Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
  • 20dB pad switch for connection to "hot" input signals
  • Uses Whirlwind's TRHL-M transformers with metal shield
