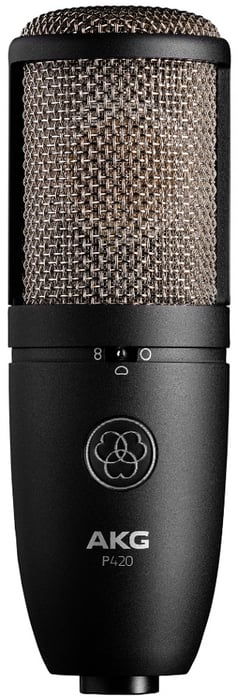

AKG P420 High-Performance Dual-Capsule Condenser Microphone

The AKG P420 is a multipattern large diaphragm true condenser microphone that offers high sensitivity and 155dB maximum SPL, delivering a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns – cardioid, omnidirectional or figure 8 – it is an ideal tool for stereo miking techniques and ambient recording.

AKG P420 Features:

• 1" dual-diaphragm microphone with three selectable polar patterns for the perfect setting
• Low noise electronics for high dynamic range
• Switchable attenuation pad for high SPL applications up to 155 dB SPL

AKG P420 Specifications:

• Audio Frequency bandwidth: 20 Hz to 20 kHz
• Sensitivity: 28 mV/Pa
• Equivalent Noise Level: 15 dB-A
• Signal to Noise: 79 dB-A
• Preattenuation Pad: -20 dB
• Bass Cut Filter: 300 - 12 dB/octave Hz
• Electrical Impedance: < /= 200 Ohms
• Recommended Load Impedance: >/= 1000 Ohms
• Polar Patterns: Cardioid, Omnidirectional, Figure eight
• Powering Interface:
  • Voltage: 44 to 52 V
  • Current: < /= 3 mA
• Audio Output: Balanced 3-Pin XLR Male
• Dimensions: 165 mm L x 54 mm Dia.
• Net Weight: 530 g
