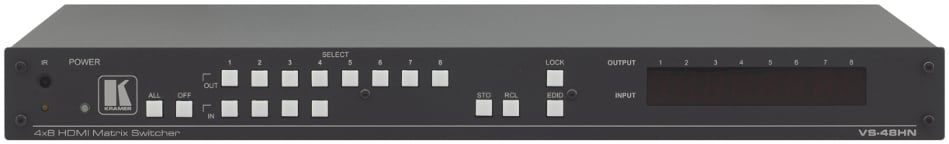

Kramer VS-48HN
1RU HDMI 4 x 8 Matrix Switcher

OUR PART #:  VS48HN

The Kramer VS-48HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
Learn More
Our Price: $2,636.00
List Price: $3,295.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS-48HN
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VS-48HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Applications:

  • Conference room presentations
  • Advertising applications
  • Rental and staging

Kramer VS-48HN Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and linear PCM 7.1 surround sound.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology -Rebuilds the digital signal to travel longer distances.
  • EDID Capture - Copies and stores the EDID from a display device.
  • Output Disconnect - For each output.
  • Front Panel Control Lockout.
  • Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
  • Communication Support - Support for Kramer Protocol 2000 and Protocol 3000.
  • Flexible Control Options - Front panel, IR remote, RS-232 (K-Router Plus™ Windows®-based software is included), Ethernet (Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Worldwide Power Supply - 100-240V AC.
  • Size - Standard 19" (1U).

Kramer VS-48HN Specifications:

  • Inputs:  4 HDMI connectors.
  • Outputs:  8 HDMI connectors.
  • Bandwidth:  6.75Gbps (2.25Gbps per graphic channel).
  • Compliance with HDMI Standard:  HDMI and HDCP.
  • Resolution:  Up to UXGA; 1080p.
  • Power Consumption:  100-240V AC, 50/60Hz, 40VA.
  • Controls:  Front panel buttons, infrared remote control transmitter, RS-232, Ethernet.
  • Operating Temperature:  0° to +40°C (32° to 104°F).
  • Storage Temperature:  -40° to +70°C (-40° to 158°F).
  • Humidity:  10% to 90%, RHL non-condensing.
  • Dimensions (WxDxH):  19” x 7” x 1U
  • Weight:  4.6 lbs. (2.1kg) approx.
  • Included Accessories:  Power cord, IR transmitter, rack "ears".
  • Options:  External remote IR receiver cable (sold separately).
