Lex Products Corp EGME16/7-P14-100
100 ft. EverGrip 14-Pin Molded Quarter Turn Motor Control Cable Extension

OUR PART #:  EGME16/7-P14-100

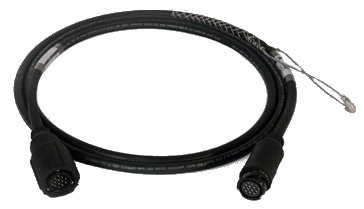

The Lex Products EGME16/7-P14-100 is a 100 ft Evergrip series 14-pin molded quarter turn motor control cable extension.
Learn More
Our Price: $378.64
List Price: $462.35
You save 18%!
Write the first review.
Lex Products Corp EGME16/7-P14-100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Lex Products EGME16/7-P14-100 is a 100 ft Evergrip series 14-pin molded quarter turn motor control cable extension. This cable features male and female 14-pin connectors that are encapsulated in thermoplastic material to prevent spinning and elminate unmateable or mismatched conections. The connector premold prevents pins and contacts from pushing back into the housing, which helps extend the life of the connectors.

Lex Products EGME16/7-P14-100 Specifications:

  • Premold design bonds the cable to the connector for superior strain relief and secure terminations
  • Premold encapsulates conductors to prevent short circuits due to stray conductors
  • Thermoplastic elastomer overmold absorbs impact, protects internal conductors and provides an insulated gripping surface
  • Locking ring is overmolded for impact resistance and a firm gripping surface when mating and unmating connectors
  • Flexible strain relief is permanently molded to extend cable life
  • Supportive wire mesh bus drop cable grip prevents stress on cable
  • Matte black finish conceals cable for stage or studio applications
  • Rating:  10 Amp, 250 VAC
  • Male/Female Connector:  14 pin molded VEAM compatible quarter turn connector
  • Cable:  16 AWG, 7 conductor SOOW
