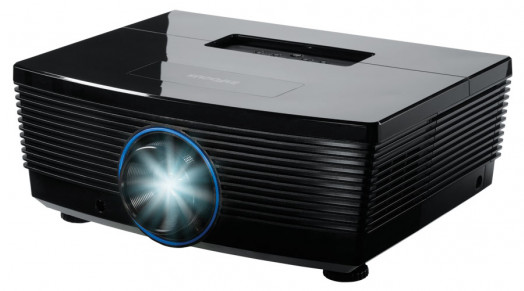

InFocus IN5312a
DLP 6000 Lumens HDMI XGA Projector

OUR PART #:  IN5312A

The InFocus IN5312a is a versatile XGA projector for professional installations and a great value.
Learn More
InFocus IN5312a Top View
InFocus IN5312a Angled Right View
InFocus IN5312a Side View

Click a thumbnail to see more images. (6 total)

Add to Cart to See Price

Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

InFocus IN5312a
Qty:
In Stock

Similar Products

The InFocus IN5312a is a versatile XGA projector for professional installations and a great value. Stunning DLP® image quality, brightness, and installation flexibility are all vital and the IN5312a has them covered. A range of connectivity, three lens options, and a small form factor help it fit into large classrooms, conference rooms, houses of worship, and more.

InFocus IN5312a Key Features:

  • XGA (1024 x 768) resolution
  • 6000 lumens
  • Three lens choices: standard lens, short throw, long throw
  • HDMI, DisplayPort, and 5 BNC inputs
  • Lens shift
  • Fits easily into a 2x2-foot ceiling tile
  • Network ready
  • 24/7 rated; no filters to clean or replace
  • Full 3D support for PCs, Blu-Ray, cable boxes and more
  • 3D sync port for your emitter

Why choose the IN5312a?

  • 6000 lumens
  • Three lens choices: standard (included), short throw, long throw
  • HDMI, DisplayPort, DVI-D and 5 BNC inputs
  • RJ45 port to monitor and control over your network
  • Lens shift for the perfect image placement
  • 24/7 rated; no filters to clean or replace
  • Compact size fits within a 2x2' ceiling tile
  • 3D ready, plus 3D sync port

Stunningly Brilliant HD resolution with vivid detail

  • 6000 lumens of brightness provide clear, vivid images in medium to large-sized venues and in high ambient light situations
  • 720p high definition resolution
  • Filter-free and rated for 24/7 fail-safe operation
  • 3D ready for content from PCs, Blu-Ray, cable boxes and more. DLP Link 3D glasses required.
  • 3D Sync Port for your 3D emitter and its compatible glasses
  • Single-lamp design for easy and economical maintenance

Digital and analog connectivity for new and legacy installations

  • HDMI input: a must for displaying HD video and audio
  • 5 BNC input for interfacing with professional switching and signal conditioning hardware
  • DisplayPort for compatibility with current and emerging connection types, including Thunderbolt™
  • DVI-D input to meet signal amplification and switching requirements
  • Control with room control systems via RS232 or over your network via the RJ45/LAN port
  • Wireless connectivity with the optional InFocus LiteShow III wireless adapter

Installation flexibility for ideal image and projector placement

  • Three lens choices (standard, short throw, long throw)
  • Lenses pull out and snap in with ease
  • Lens shift (horizontal and vertical) for the perfect image placement
  • Compact form factor fits easily into a 2x2 ceiling tile
  • AMX Device Discovery will identify the IN5312a and automatically configure itself to control it
  • Lamp door is easily accessible when installed for quick lamp replacement

InFocus IN5312a Specifications:

  • Native Aspect Ratio:  4:3
  • Technology:  DLP
  • Resolution:  XGA(1024x768)
  • Lumens (Eco/High):  5400/6000
  • Contrast:  2000:1
  • 3D:  VESA 3D Sync Port for IR emitter and its compatible 3D glasses. Supports all major 3D standards for DLP projectors. DLP Link 3D glasses required.
  • Closed Captioning:  Yes
  • Speakers:  6W(2 x 3W)
  • Audible Noise (Eco/High, dBA):  31 dB/34 dB
  • Keystone:  +/- 40-degrees vertical
  • Lamp:  SP-LAMP-090
  • Lamp Hours (Eco/High):  1500/3500
  • Connections:
    • VGA x 2
    • HDMI 1.4
    • DisplayPort
    • DVI-D
    • 5 BNC
    • S-Video
    • Component
    • Composite
    • RJ45
  • Lens Shift: Horz (min/max) +5%/+5%
  • Lens Shift: Vert (min/max) -40%/0%
  • Throw Ratio:  2~1.6
  • Weight:  19 lbs. (8.6kg)
  • Product Dimensions (HxWxD):  13.3in x 16.9in x6.9in (338mm x 430mm x 175mm)
  • Shipping Weight:  21 lbs. (9.5kg)
  • Shipping Dimensions (HxWxD):  16.5in x 22in x7.8in (420mm x 560mm x 197mm)
  • Power consumption:  450W Max.
  • Product Warranty:  2 Years
  • Lamp Warranty:  6 Months
  • Accessory Warranty:  90 Days
  • Approvals:  UL and c-UL (US/Canada), FCC (US/Canada), CE (Europe)

All specifications subject to change without notice.
