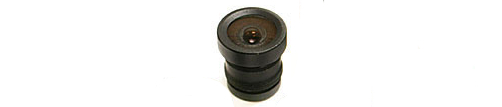

Marshall Electronics V-4402.5-2.5-HR
2.5mm F2.5 High Resolution CCTV Lens

OUR PART #:  V-4402.5-2.5-HR

From Marshall Electronics 4400 Series of High Resolution Miniature Fixed Focal Lenses comes the V-4402.5-2.5-HR Lens.
Learn More
Our Price: $27.17
List Price: $39.99
You save 32%!
Marshall Electronics V-4402.5-2.5-HR
Qty:
Similar Products

From Marshall Electronics 4400 Series of High Resolution Miniature Fixed Focal Lenses comes the V-4402.5-2.5-HR Lens. Designed for Marshall CCTV cameras, this lens is intended to improve resolution for robotics, machine vision, imaging, security, and OEM applications. The 4400 series of lenses are engineered and manufactured with the utmost precision. They have improved image quality, maximizing their capability and performance for an array of applications. This series features M12 x 0.5 barrel thread and are compatible with most Marshall cameras. Also you can use the V-LH04 and V-LH08 lens holders for OEM designs. Custom-designed metal or plastic lens holders are available to meet any OEM application requirements.

Marshall V-4402.5-2.5-HR Lens Specifications:

  • Focal Length: 2.5mm
  • Relative Aperature: 2.5
  • Sensing Area: 1/3"
  • Back Focal Length: 5.04
  • # of Elements: 6
  • Minimum Object Distance: 15.75"-8 (40cm-8)
  • Weight: 0.24 oz (6.8 g)
  • Length: 0.79" (20mm)

NOTE: For additional specifications, please refer to the attached data sheet.
