Altman GC-3-1
1000W 3 Section Ground CYC Light

OUR PART #:  GC-3-1

The Ground Cyc is multi-lamp, compartmented luminaire designed to provide an even wash of light on cycloramas from a ground row position.
Learn More
Selected Model Price: $712.00
List Price: $890.00
Save up to 20%!
Write the first review.
Altman GC-3-1
Select a Model: (shipping times are approximate)

Related Products

The Ground Cyc is multi-lamp, compartmented luminaire designed to provide an even wash of light on cycloramas from a ground row position. The luminaire is available in one lamp through twelve lamp configurations with single to twelve circuit wiring. This version, the GC-3-1 from Altman Lighting is a three lamp configuration. Lamps are on nine inch centers. Typically, each compartment provides an asymmetrical distribution with a 50° beam angle, 70° field angle horizontally and a 65° beam angle, 83° field angle vertically.

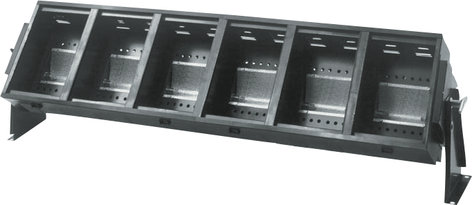

NOTE: Product shown in image is for illustrative purposes only. Actual product will vary in appearance.

Altman Lighting GC-3-1 Features:

  • Die-cast and sheet steel construction
  • Asymmetrical distribution for even cyc washes
  • Compartmented for color separation
  • Porcelain recessed single contacts on 9"centers
  • Spring loaded color frame retainers
  • Floor trunnions, color frames, and safety cable with spring clip included
  • Safety screen(s) included
  • U.L. and c.U.L. listed for 1000 watt lamps
  • Made in the USA

Altman Lighting GC-3-1 Specifications:

  • Housing: Die-cast aluminum and 20 gauge sheet steel.
  • Materials: Construction employs all corrosion-resistant materials and hardware.
  • Reflectors: Peened specular aluminum.
  • Socket: Recessed single contact, two provided. Tool free relamping.
  • Rating: 120/240 volts AC/DC operation, 8.3/4.2 amps,1000 watts maximum.
  • Cable: 36" Teflon and/or silicone-fiberglass leads encased in black fiberglass sleeving.
  • Safety Screens: Stainless steel, one provided with each section.
  • Trunnions: Rigid 16 gauge steel, two mounting positions.
  • Hanging Arms: 3/16" strap steel, five mounting positions.
  • Hanging Chain: 40" 2/0 zinc plated bowtie chain. One length per 5ft provided for units over 10ft in length.
  • Finish: Baked black enamel, for GC-5 thru GC-12.Black epoxy sandtex, electrostatic application for GC-1 thru GC-3.
  • Weight: Approx; 13 1/2 lbs. (5.9kg.) per foot.
