Neutrik NKE6S-3
3M etherCON Cat6 Patch Cable

OUR PART #:  NKE6S-3

Our Price: $52.82
List Price: $71.78
Save up to 38% when you order by quantity!
  • Buy 25: $47.71 each.
  • Buy 50: $46.01 each.
  • Buy 100: $44.30 each.
Write the first review.
Neutrik NKE6S-3
Qty:
Usually ships in 7-14 business days.

Related Products

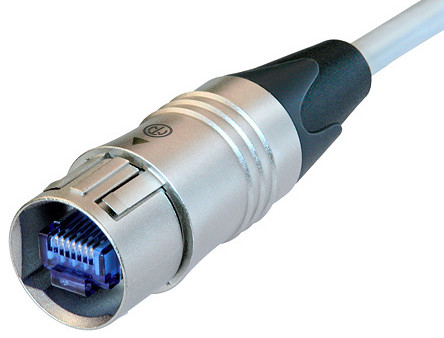

The Neutrik NKE6S-3 is a preassembled etherCON CAT6 patch cable that uses a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.

Neutrik NKE6S-3 Features:

  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

Neutrik NKE6S-3 Specifications:

  • Length: 10 meters
  • Contact Resistance: < 10 MOhms (inner)
  • Dielectric Strength: 1 kVdc
  • Frequency Range: 1 - 250 MHz
  • Insulation Resistance: >/= 0.5 GOhms
  • Rated current per contact: 1.5 A
  • Rated voltage: 50 V
  • Insertion force: </= 40 N
  • Withdrawal force: </= 20 N
  • Lifetime: > 1000 mating cycles
  • Wire Size: 8 x AWG 27/7 mm²
  • Locking Device: Push-Pull
  • Boot: Polyurethane
  • Contact plating: 0.7 µm Au over 1.2 µm Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
  • Protection class: IP 65
  • Temperature range: -10 °C to +60 °C
