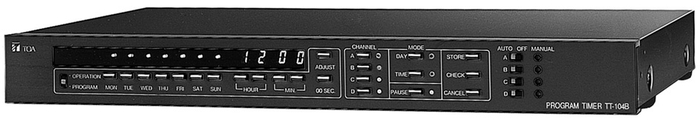

TOA TT104B-304L
Quartz Clock Timer with 4 Independent Outputs

OUR PART #  TT104B-304L

Our Price: $660.21
List Price: $817.01
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TOA TT104B-304L is a program timer that comes with 4 independent outputs and is capable of controlling 4 different broadcasts simultaneously.

TOA TT104B-304L Specifications:

  • Power Source:  110 - 120 V AC, 50/60 Hz
  • Power Consumption:  3 W
  • Displayed Contents:  Day of the week, hour and minute
  • Programmable Item:  Day of the week, hour, minute, output channel
  • Number of Channels:  4 channels (A,B,C,D)
  • Output System:  No-voltage (DRY) make contact (5-second pulse make output)
  • Output Capacity:  24 V DC, 0.5 A
  • Output Terminal:  M4 screw terminal, distance between barriers: 9 mm (0.35)"
  • Program Capacity:  30 steps per channel
  • Clock Accuracy:  +/- 5 seconds per month
  • Power Outage Protection Period:  100 hours
  • Operating Temperature:  32?F to 122?F (0°C to +50°C)
  • Finish Panel:  Aluminum, black, 30 % gloss, paint
  • Case:  Pre-coated steel plate, black
  • Dimensions (WxHxD):  16.54" × 1.87" × 9.7" (420mm × 47.5mm × 246.5mm)
  • Weight:  5.51 lbs (2.5 kg)
  • Optional Rack-mounting bracket:  MB-15B

TOA TT104B-304L
Quartz Clock Timer with 4 Independent Outputs

OUR PART #  TT104B-304L

Product Information:

The TOA TT104B-304L is a program timer that comes with 4 independent outputs and is capable of controlling 4 different broadcasts simultaneously.

TOA TT104B-304L Specifications:

  • Power Source:  110 - 120 V AC, 50/60 Hz
  • Power Consumption:  3 W
  • Displayed Contents:  Day of the week, hour and minute
  • Programmable Item:  Day of the week, hour, minute, output channel
  • Number of Channels:  4 channels (A,B,C,D)
  • Output System:  No-voltage (DRY) make contact (5-second pulse make output)
  • Output Capacity:  24 V DC, 0.5 A
  • Output Terminal:  M4 screw terminal, distance between barriers: 9 mm (0.35)"
  • Program Capacity:  30 steps per channel
  • Clock Accuracy:  +/- 5 seconds per month
  • Power Outage Protection Period:  100 hours
  • Operating Temperature:  32?F to 122?F (0°C to +50°C)
  • Finish Panel:  Aluminum, black, 30 % gloss, paint
  • Case:  Pre-coated steel plate, black
  • Dimensions (WxHxD):  16.54" × 1.87" × 9.7" (420mm × 47.5mm × 246.5mm)
  • Weight:  5.51 lbs (2.5 kg)
  • Optional Rack-mounting bracket:  MB-15B
