Product Overview

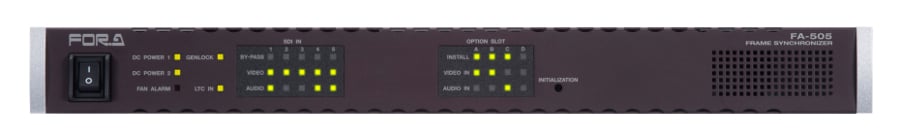

The FA-505 from FOR-A is a frame synchronizer equipped with the various functions you need for video production and that enables multi-channel routing (5 video inputs and 5 video outputs).
It supports 3G-SDI and HD/SD-SDI input/output as standard and naturally includes all the typical features of a frame synchronizer as well as a color corrector (standard) enabling up/down/cross conversion of a variety of video signals. For audio signal processing, it is highly versatile with delay adjustment and remapping functions plus a sampling rate converter. By combining these varied options, a single unit can provide the optimal functionality for all video production scenes, including transmission, outside broadcasting, news reporting, production, editing and distribution.
FOR-A FA-505 Features:
- 5 3G/HD/SD-SDI inputs/outputs (w/ distributionoutput)
- Compact, powerful and cost effective
- Supports max. 16 channels of embedded audio signalson each channel
- Mutual conversion between 3G-SDI Level A and B
- Powerful frame synchronizer performance
- Up/Down/Cross converter on each channel
- Color corrector on each channel
- Video and audio delay circuit on each channel
- GUI monitoring and control
FOR-A FA-505 Specifications:
- Video Formats:
- 3G: 1080/59.94p (Level A/B), 1080/50p (Level A/B)
- HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
- SD: 525/60, 625/50
- Video Input: 3G-SDI: 3 Gbps (Level A/B), HD-SDI: 1.5Gbps or SD-SDI: 270 Mbps, 75 ohm, BNC × 5
- Video Output: 3G-SDI: 3 Gbps (Level A/B), HD-SDI: 1.5 Gbps or SD-SDI: 270Mbps, 75 ohm, BNC × 10
- NOTE: *Distribution output for each channels
- Genlock Input: BB: NTSC 0.429 Vp-p/PAL 0.45 Vp-p orTri-level Sync: 0.6 Vp-p, 75 ohm, BNC × 1, loop-through (to be terminated with75 ohm terminator, if unused)
- Synchronizer Modes: Frame Sync mode, Line Sync mode,AVDL mode, AVDL (Minimum) mode
- Video Delay: Maximum 8 frames (in Frame Syncmode)
- Video Processing Functions: Up converter, Downconverter, Cross converter, Aspect converter, Proc. Amp., Colorcorrector
- Proc. Amp.:
- Video level: 0.0% to 200.0%
- Chroma level: 0.0% to 200.0%
- Black level: -20.0% to 100.0%
- HUE: -179.8° to +180°
- Video Clip: YPBPR mode, RGB mode
- Color Correction: Balance mode, Differential mode,Sepia mode
- Audio Input: Embedded Audio:
- 3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16 to 24-bit, synchronous/asynchronous
- SD: 16 channels (Group 1 to 4), 48 kHz, 16 to 24-bit, synchronous only
- Audio Input (optional):
- FA-10ANA-AUD (Analog Audio):
- Line Input:
- Balanced or unbalanced, 4 channels (2 stereochannels), 25-pin D-sub (female) × 1 (also serves as analog audiooutput)
- 600 ohm/Hi-impedance, 48 kHz, 24-bit
- Input level: -10 dBu to +8 dBu
- Mic Input:
- Balanced or unbalanced, 2 channels (1 stereochannel), 25-pin D-sub (female) × 1 (also serves as line inputCH1/CH2)
- 600 ohm/Hi-impedance, 48 kHz, 24-bit
- Input level: -55 dBu to +30 dBu
- FA-10AES-BL (AES/EBU): Balanced, 0.2 Vp-p to 7.0 Vp-p, 110 ohm, 25-pin D-sub (female), Maximum 4 pairs of stereo channels, 32/44.1/48 kHz, 16 to 24-bit
- FA-10AUS-UBL (AES/EBU): Unbalanced, 1.0 Vp-p, 75 ohm, BNC × 4 (also serve as AES/EBU outputs), Maximum 4 pairs of stereo channels, 32/44.1/48 kHz, 16 to 24-bit
- Audio Output: Embedded Audio:
- 3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous (3G Level-B (Embedded Link-A only))
- SD: 12 channels (Group 1 to 3), 48 kHz, 16/20/24-bit, synchronous only
- Audio Output (optional):
- FA-10ANA-AUD (Analog Audio):
- Balanced or unbalanced, 4 channels (2 stereo channels)
- 25-pin D-sub (female) × 1 (also serves as analog audio input)
- Less than 100 ohm: 48 kHz, 24-bit
- Output level: -10 dBu to +4 dBu
- FA-10AES-BL (AES/EBU): Balanced, 3.3 Vp-p, 110 ohm, 25-pin D-sub (female) × 1, Maximum 4 pairs of stereo channels, 48 kHz, 16/20/24-bit
- FA-10AES-UBLC (AES/EBU): Unbalanced, 1.0 Vp-p, 75 ohm, BNC × 4, Maximum 4 pairs of stereo channels, 48 kHz, 16/20/24-bit
- Audio Delay: 5 ms to 1,000 ms (adjustable in 1 mssteps)
- Audio Processing: Sampling rate converter (SRC), Gaincontrol, Down mix, Channel re-mapping, Channel mute (can be set per achannel)
- Interface: Ethernet (10Base-T/100Base-TX/1000Base-T):RJ-45 x 1
- Interface (optional): FA-10GPI: 25-pin D-sub (female)x 1
- Temperature / Humidity: 0°C to 40°C / 30% to 90% (nocondensation)
- Power: 100 V AC to 240 V AC ±10%, 50/60 Hz (Redundantpower supply as standard)
- Dimensions: Approx. 430 (W) × 400 (H) × 44 (D) mm /16.93 (W) x 15.75 (H) x 1.73 in.
- Consumables:
- Power supply unit (to be replaced every 5 years)
- Cooling fan (to be replaced every 6 years)
- Accessories: Operation manual (CD-ROM), Setup guide, AC cord, Rack mountbrackets
