Kinotehnik LCDVFBM
Viewfinder Enlarger for Blackmagic Design Pocket Cinema Camera

OUR PART #:  LCDVFBM

Kinotehnik produces the LCDVF - a viewfinder enlarger series that comes in a number of variations and is compatible with many cameras with 3”, 3.2" and 3.5" screens.
Learn More

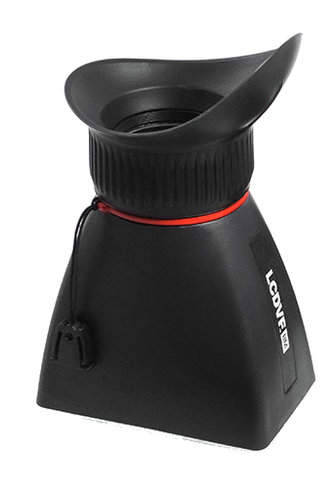

Front View LCDVFBM (camera & lens not included)
Top View of LCDVFBM (camera & lens not included)
Rear View of LCDVFBM (camera & lens not included)

Click a thumbnail to see more images. (5 total)

Our Price: $99.00
List Price: $159.00
You save 38%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kinotehnik LCDVFBM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kinotehnik produces the LCDVF - a viewfinder enlarger series that comes in a number of variations and is compatible with many cameras with 3”, 3.2" and 3.5" screens. comes in a number of variations and is compatible with many cameras with 3”, 3.2" and 3.5" screens. The LCDVFBM from Kinotehnik is a version that is suited for the Blackmagic Design Pocket Cinema Camera.

NOTE: Product shown in image is for illustrative purposes only. Actual product purchase does not include camera and lens shown.

In the heart of the LCDVF series is an achromatic lens pair that consist of two optical components vacuum-cemented together to form an achromatic doublet which is computer optimized to correct for on-axis spherical and chromatic aberrations. Similar quality of optics is rarely to be seen in even professional broadcast equipment. All you need to do is apply adhesive-covered ultra-sleek metal frame to your camera body and from there on, it’s click-on, click-off: simple and safe.

Kinotehnik LCDVFBM Includes:

  • LCDVF viewfinder loupe
  • 2x mounting frames (1x for LCDVF 4N)
  • Microfiber eyecushion
  • Protective neoprene pouch
  • Lanyard
  • Cleaning cloth
  • User manual

Kinotehnik LCDVFBM Features:

  • Spontaneously transform your video enabled DSLR into a discreet handheld video camera
  • Lets you shoot photos and video in direct sunlight
  • Stabilizes camera when shooting video handheld
  • Aids on-the-fly focusing
  • Allows the use of LCD in bright daylight outdoors
  • Magnification of 220% specially tailored to most 3"LCD screens
  • AR coated and optically corrected lens with 40mm clear aperture
  • Robust and durable: no moving parts
  • Splash and dust proof
  • 180° flipping design allows instant left or right eye usage
  • Universal magnetic mounting interface allows rapid mounting and demounting without any wear and tear
  • Allows the use of battery and wireless grip and all other original accessories
  • Flat mounting interface allows easy cleaning of the LCD screen
  • At most cases all LCDVFs are usable with prescription ranging from +0.5 to -2
  • In addition, all LCDVF models now come with built-in 37mm metal thread that can accommodate diopter correction lenses (to be purchased separately)

Kinotehnik LCDVFBM Specifications:

  • Aperture diameter: 40mm
  • Magnification: 220%
  • Body material: Impact resistant ABS
  • Eyecup: Skin friendly silicone rubber
  • Eyecushion: Bluestar microfiber
  • Universal mounting interface: Galvanized and powder coated metal shield
  • Weight: 110g (3.84 oz)
