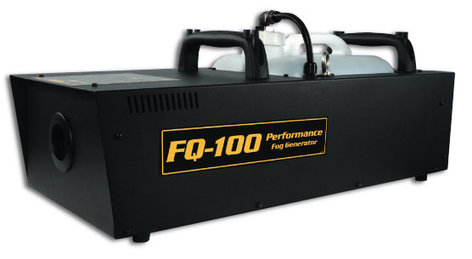

High End Systems FQ-100
Fog Generator

OUR PART #:  FQ-100

The High End Systems FQ-100™ high-performance fog generator is designed to meet the rigorous demands of the nightclub, theatrical and touring industries.
Learn More
Our Price: $749.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

High End Systems FQ-100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The High End Systems FQ-100™ high-performance fog generator is designed to meet the rigorous demands of the nightclub, theatrical and touring industries. This updated version of the industry standard F-100 fog generator produces any atmosphere – from dense fog to fine mist. The legendary Atmospheres® Fog Generating fluid is specially formulated to provide a dense, safe, water-based fog of a fine particulate size.  In addition to low noise levels ideal for theatrical and studio work, the FQ-100 also includes an internal LCD digital menu system providing the ability to set the volume control, timer control, and DMX functions as desired.  The FQ-100 performance fog generator continues the tradition and benchmark set by the original F-100.

High End Systems FQ-100 Features:

  • Large 9.5 liter ( 2.5 gallon) removable fluid reservoir for extended use
  • Atmospheres® scientifically formulated fluid provides optimum particulate size for lighting applications
  • LCD Menu
    • Timer with interval, duration, and volume; set DMX; continuous fogging, Manual ON/OFF
  • 3-pin and 5-pin XLR DMX in/out connectors
  • Fluid level sight gauge
  • User replaceable fluid filter

Output

  • 20,000 cu.ft (566m3) per minute maximum output
  • 10 min / 1 liter  fluid consumption rate
  • 11 minutes warm-up time
  • Optoelectronic liquid sensor with auto shutoff

Construction

  • Low-maintenance, corrosion-resistant vaporizing chamber
  • Dual carrying handles
  • Safety cable mounting point

Fluid Types

  • HQ
  • Stage

High End Systems FQ-100 Specifications:

Output:

  • Fluid capacity:  9.5 liter (2.5 gal) fluid reservoir
  • Minimum Output:  566 m3 (20,000 ft3)
  • Warm-up Time:  11 min
  • Liquid Sensor:  Optoelectronic with auto shutoff
  • Fluid Type:  Water-based Atmospheres ® fine particulate fog generating fluid. HQ, Stage

Power Consumption:

  • 100-120 VAC 50/60 Hz or 200-240 VAC 50/60 Hz

Operation

  • Menu Interface:
    • Timer to set interval and duration
    • Volume control
    • DMX Channel setting
    • Manual ON/OFF
    • Continuous fogging setting
    • LCD Display
  • Compliance:  ROHS, TUV 499 (UL standard)
  • Environmental Specifications:
    • Minimum ambient temperature -5° C (23°F)
    • Maximum ambient temperature 50°C (122°F)

DMX

  • DMX Control:  DMX-512
  • DMX Channel Requirement:  One
  • Address Methods:  Menu Display
  • DMX/RDM Data Connectors:  3-pin and 5-pin male and female XLR connectors

Physical

  • Dimensions:  25.4" x 11.9" x 6.6" (646 mm x 301 mm x 168 mm)
  • Shipping Dimensions:  29.0" x 16.1" x 23.7" (740 mm x 410 mm x 602 mm)
  • Fixture Weight:  34 lbs. (15.5 kg)
  • Shipping Weight:  42 lbs. (19 kg)
