Juice Goose iP-1
Single Duplex 15 Amp Power Module with Web Based Remote Control Capabtility

OUR PART #:  IP-1

The iP-1, “Piwi”, is a great in-wall power control and monitor device.
Learn More
Selected Model Price: $305.00
List Price: $359.00
Save up to 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Juice Goose iP-1
Select model: (shipping times are approximate)
Qty:

Similar Products

The iP-1, “Piwi”, is a great in-wall power control and monitor device. It has potent functionality with an on board web server that can activate each of the two receptacles on the duplex individually and monitor each for current draw (amperage) from anywhere on the planet. Piwi can also be integrated into a larger, cloud based control network to be activated and monitored over TCP or UDP with any system using standard web based communications protocol.

The increased popularity of web based power control and monitoring has given rise to a variety of complex, rack mounted components. Piwi fills an unaddressed need for an economical, convenient in wall component with an aesthetic and economical feature set for new or retrofit installation. The metal faceplates are available in black, white and ivory.

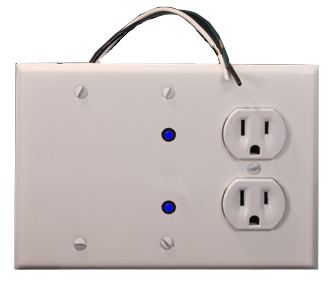

The Piwi fits in a 2+1 gang enclosure. Two spaces are needed for the Piwi circuitry and duplex receptacle. An additional space is needed for 120 volt wire connections. For installation convenience, a utility box is supplied with the unit. But, any standard three gang enclosure is sufficient.  The iP 1 consists of a preassembled front plate, back box, duplex receptacle (NEMA 5-15R) and power control circuitry.

After main AC power is attached to the Piwi, connect Ethernet cabling to the Network port on the side of the enclosure. Then fasten the assembly into the three gang wall box. That's it!

Juice Goose iP-1 Features:

  • Internet and intranet remote control
  • On-board web server for easy set up, control, sequencing and monitoring
  • Text based communications capability over Ethernet using raw TCP or UDP
  • Front panel indicators
  • Amperage monitoring from 0.20 to 20.0 amps per power POD
  • Administrator and User login options
  • Automatic Power Cycle to reboot a network data router if network connection is lost
