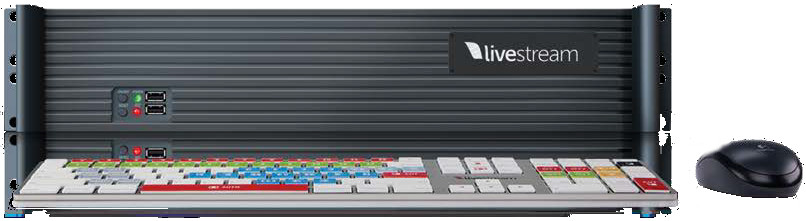

Livestream Studio HD31
Live Production Switcher / Streamer with 3x HDMI / HD-SDI Inputs

OUR PART #:  LS-HD31

The Livestream Studio HD31 is an entry-level live production switcher that features three HD-SDI / HDMI inputs and all of Studio Software's features*...
Learn More
Our Price: $3,799.05
List Price: $3,999.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Livestream Studio HD31
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Livestream Studio HD31 is an entry-level live production switcher that features three HD-SDI / HDMI inputs and all of Studio Software's features*, providing you with everything you need for a multi-camera live production.
*Limited to a maximum streaming quality of 480p and a single ISO recording.

Includes:

  • Livestream Studio HD31
  • Power cable
  • Livestream Studio™ Keyboard
  • Mouse
  • Livestream Mousepad
  • Rack Ears
  • Rubber Feet
  • Blackmagic Design cards documentation and driver CD
  • Warranty

Livestream Studio HD31 Features:

  • 3x SDI / HDMI inputs
  • Works on up to 2 scream (not included)
  • 2 remote camera tracks
  • 2 media tracks
  • 3 GFX tracks
  • 40 hours of broadcast quality recording
  • Analog audio in
  • Front-panel USB / headphone
Livestream Studio HD31 Specifications:
  • HD-SDI Inputs: 3
  • Embedded Audio Input: 3 Stereo or 24 Mono Inputs
  • Audio Monitoring (1/8"): *
  • HDMI Inputs: 3
  • HDMI Outputs: 1
  • HD-SDI Output: 1
  • Composite Input (BNC): 0
  • Composite Output (BNC): 0
  • S-Video Input: 0
  • S-Video Output: 0
  • Component Input: 0
  • Component Output: 0
  • Analog Audio (1/8") Input: 1
  • Analog Audio (1/8") Output: 1
  • Analog Audio (1/4") Input: 0
  • Analog Audio (1/4") Output: 0
  • AES/EBU Input: 0
  • AES/EBU Output: 0
  • Additional AES/EBU or Analog Audio Output: 0
  • Tom Bihn Carry Bag: Not Available
  • Livestream Studio Keyboard: Included
  • Media Sources:
    • 7 integrated digital media sources for video & graphics playback.
    • 2 DDRs (video clip playback with built-in transcoder),
    • 3 GFX (graphics),
    • 2 Color Bars / Background Color
  • Remote Camera:
    • 2x Remote camera desktop video & audio over local Wifi or Ethernet network.
    • Download Livestream Studio™ Remote Camera here.
  • Format Converter: Built-in broadcast quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats.
  • Built-In Multiview: On-screen full field rate multiview of all live inputs, Preview, Program Out, GFX and DDR, Audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens.
  • External Multi-Screens: 1x Extended Screen output using HDMI*
  • Video Switcher / Mixer: 1x Mixer & Effects Bank (M/E) with no upstream keyer. transitions: SMPTE Wipe, Cut & Fade (Auto transition with adjustable duration in frames, manual via on-screen T-BAR or keyboard shortcuts)
  • Graphics Downstream Key: 3x Graphics DSK (downstream key) channels. One channel for GFX1, one channel for GFX2, one channel for GFX3.  Independent or locked transition controls (fade/cut).  Preview on multiview.
  • Graphics & Titling: Load JPG or PNG files (full transparency support with PNG files). Add text (set position/font/size/color) over any
    loaded image file within the GFX1 or GFX2 or GFX3
  • Video clip Playback:
    • 2 Media Players - Eject/Load clip. PlayPause/stop.
    • Audio/Video Scrubber. Timecode indicator. Seek to timecode.
    • Mark In/Mark Out. Loop. Auto-play on transition
  • Recording: AVI MJPEG with uncompressed audio.  Interlacing and timecode support. Full compatibility with Blackmagic Design Media Express and Adobe Premiere.
  • Recording Capacity: ~40 hours at 1080i (Using 2 TB built in Hard Drive with recorder set to record at 100Mbps MJPEG AVI)
  • Live Streaming: High Quality Streaming. Integrated live streaming to Livestream or any other RTMP compatible service including Ustream, YouTube Live, Akamai, Wowza Media Server.
  • Audio Mixing: Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones.  Incorporated video switcher follow feature with audio crossfade support when fading two video sources.
  • Supported Formats: HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60SD: 625/25 PAL, 525/29.97 NTSC
  • Playback Media Formats:
    • GFX: JPEG or PNG image files with transparency support.
    • DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mov &.avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3
  • Record Media Formats: AVI MJPEG with uncompressed audio
  • Operating System: Windows 7 Professional (64 bit) or better
  • CPU: Intel Core i7-4790K Haswell Quad-Core 4.0GHz
  • Graphics Card: On Board Graphics
  • Storage: 2TB WD BLACK SERIES WD2003FZEX 7200 RPM/ SATA 2.5" Internal Hard Drive
  • RAM: G.SKILL Trident X Series 16GB (2 x 8GB) 240-Pin DDR3 SDRAM
  • Processing:
    • Video: 4:2:2, 10 bit Color (REC 601, REC 709)
    • Audio: 48 kHz, 24-bitrEF IN/Genlock (Requires genlocking the two Blackmagic Design cards via two separate connectors)
  • Built-in Video Input/Output Cards: 3 Blackmagic Design DeckLink Mini Recorders (PCI), 1 Blackmagic Design DeckLink Mini Monitor (PCI)
  • Dimensions: 13.7" D x 19" W x 3.5" H
  • Weight: 13.8 lbs
