RDL D-RLC10KM Remote Level Control with Muting

OUR PART #: D-RLC10KM MFR #: D-RLC10KM

Copied to clipboard

The Radio Design Labs D-RLC10KM is the ideal companion to RDL VCA modules where levels are to be controlled from a single remote location and pushbutton muting is desired. ...Read more

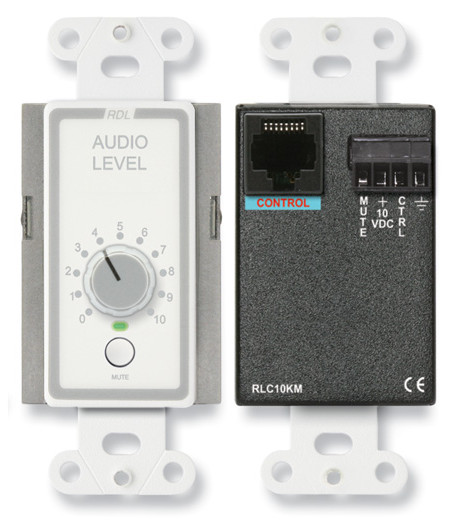

RDL D-RLC10KM Remote Level Control With Muting Image 1
RDL D-RLC10KM Remote Level Control With Muting
Our Price: $142.23
List Price: $189.64
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Radio Design Labs D-RLC10KM is the ideal companion to RDL VCA modules where levels are to be controlled from a single remote location and pushbutton muting is desired. It is designed to directly interface with the 3 wire control input of an RDL VCA module. A single shielded pair is normally used. The D-RLC10KM contains a long life 10 kOhms potentiometer for setting the control voltage. The front panel has 10 graphic increments which provide a visual indication of the level setting. A MUTE button alternately mutes or un-mutes the audio in the associated RDL VCA product. An LED MUTE indicator glows red when the output is muted (0 volts dc), and turns green when the output is active (dc output voltage set by control). The D-RLC10KM features a standard RDL white front panel.

Radio Design Labs D-RLC10KM Features:

  • Remote Level Control Panel
  • Mute Button Toggles Output On and Off
  • Red/Green On/Off Mute Indicator
  • Single-Turn Rotary Control
  • Single Control Location
  • Direct Connection to RDL VCA Modules
  • Direct Control of Modules with RJ45 VCA Control
  • RJ45 or Discrete Wiring Connections

Radio Design Labs D-RLC10KM Specifications:

  • Resistance: 0 to 10 kOhms, linear
  • Mute button: Momentary
  • Indicator: Red = Muted (dc variable output = 0 volts); Green = Active (dc variable output tracks front panel knob)
  • MUTE Output: 25 mA open-collector
  • Mounting: Mounts in standard US electrical box; cover plate available separately
  • Dimensions (HxWxD): 4.1" x 1.44" (w/o knob), 2" (w/knob) x 1.7" (10.4 cm x 3.7 cm (w/o knob), 5 cm (w/knob) x 4.33 cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625 x 4.625 x 2.125 in.
  • Shipping Weight: 0.43 lbs.
  • WEEE weight: 0.28 lbs.
