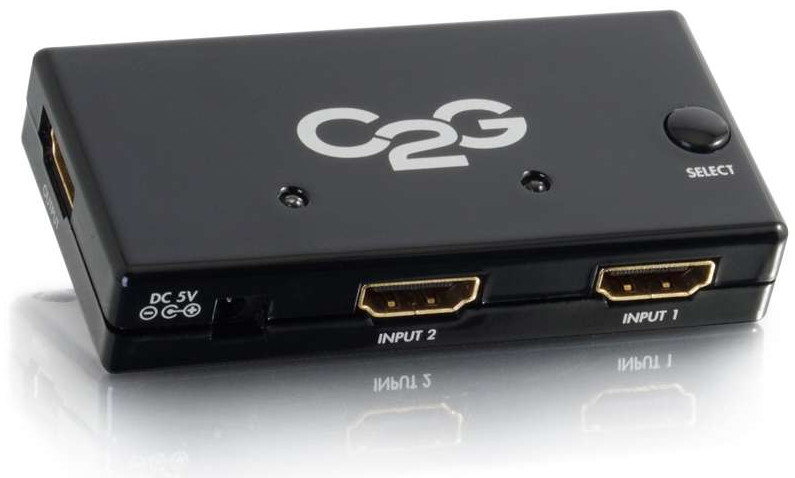

Cables To Go 40349
2 Port Compact HDMI Auto Switch

OUR PART #:  40349-CTG

Perfect for situations where two HDMI devices must share a single HDMI input on a display, the Cables 2 Go 40349 HDMI auto switch provides for hassle free operation.
Learn More
Sale Price: $18.36
List Price: $28.99
You save 37%!
Write the first review.
Cables To Go 40349
Qty:
Similar Products

Perfect for situations where two HDMI devices must share a single HDMI input on a display, the Cables 2 Go 40349 HDMI auto switch provides for hassle free operation.  The power required for operation of this switch is provided from the HDMI source devices, so no separate power adapter is required.  With the wealth of devices now using HDMI, it is easy to run out of free HDMI inputs on a HDTV or home theater receiver.  This HDMI selector switch solves the problem by providing additional high-definition digital inputs for sources including Blu-ray™ and DVD players, gaming systems, and high-definition cable/satellite boxes.

The auto switching functionality provides for a system that is easy to use, while manual switching functionality is available for situations where more control is desired.  The auto switching feature is able to sense when a new device is connected or powered on and will automatically switch to that port.  When the device is disconnected or powered off, then this feature automatically switches to the first connected device. In situations where two devices are connected to the switch and powered on, or sending an HDMI signal to the switch, the Select button on the top of the switch may be used to switch back and forth between the two inputs.

NOTE: Most HDMI source devices are able to provide the necessary power for the operation of the HDMI switch; however, in some situations the power supply of the HDMI source device is insufficient and additional power is required.  In those situations, power for the HDMI switch may be supplied using our HDMI voltage inserter.

Cables 2 Go 40349 2-Port HDMI Auto Switch Specifications:

  • Signal Specifications:
    • Power requirement - 5V (from HDMI source)
    • Maximum bandwidth - 2.5Gbps per channel
    • Propagation delay - 2ns
    • HDMI features - Supports Deep Color
    • Supply voltage - VDD = 3.3V ±5%
    • Termination resistors - Integrated 50Ohm (±10%)
    • Maximum video resolution - 1080p
    • Video resolutions supported - 640 x 480 @ 72Hz, 640 x 480 @ 75Hz, 800 x 600 @ 56Hz, 800 x 600 @ 60Hz, 800 x 600 @ 72Hz, 800 x 600 @ 75Hz, 1024 x 768 @ 60Hz, 1024 x 768 @ 70Hz, 1024 x 768 @ 75Hz, 1280 x 1024 @ 75Hz, 1920x1080 @ 60Hz
  • Maximum Ratings:
    • Supply voltage to ground potential - -0.5V to +4.0V
    • DC input voltage - -0.5V to VDD
    • DC output current - 120mA
    • Power dissipation - 1.0W
  • Operating Conditions:
    • Termination supply voltage, VDD - 3.30V ± 5%
    • Terminal resistance - 45 to 55Ohm
  • Source DC Characteristics:
    • Single-ended high level output voltage, VH - VDD ±10mV
    • Single-ended low level output voltage, VL - (VDD ? 600mV) ? VL ? (VDD ? 400mV)
    • Single-ended output swing voltage, VSWING - 400mV ? VSWING ? 600mV
    • Single-ended standby (Off) output voltage, VOFF - VDD ± 10mV
  • Transmitter AC Characteristics at TP2:
    • Rise time/fall time (20%-80%) - 240ps
    • Intra-pair skew at transmitter connector, Max - 60ps max
    • Inter-pair skew at transmitter connector, Max - 100ps max
    • Clock jitter, Max - 82ps max
  • Sink Operating DC Characteristics at TP2:
    • Input differential voltage level, VDIFF: 150mV ? VDIFF ? 1200mV
    • Input common mode voltage level, VICM: (VDD ? 300mV) ? VICM ? (VDD-37.5mV) or VDD ±10%
  • Sink DC Characteristics when source disabled or disconnected at TP2:
    • Differential voltage level - VDD±10mV
  • Physical Characteristics:
    • Inputs - HDMI Female x 2
    • Outputs - HDMI Female x 1
    • Dimensions (HxWxD) - 16 x 86 x 44mm
    • Operating temperature - 5C to +40C; 10-90% RH (Non-Condensing)
    • Storage temperature - -20 to +64C; 10-90% RH (Non-Condensing)
