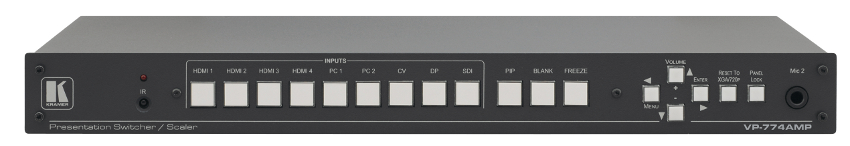

Kramer VP-774AMP
9 Input HDMI and HDBaseT ProScale Presentation Switcher-Scaler


The VP-774AMP is a high-performance presentation switcher and scaler from Kramer.
Learn More
Our Price: $2,876.00
List Price: $3,595.00
You save 20%!
Write the first review.
Kramer VP-774AMP
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The VP-774AMP is a high-performance presentation switcher and scaler from Kramer. It accepts one of nine inputs: one DisplayPort (DP), one composite video, two computer graphics, one 3G HD-SDI and four HDMI signals. It scales the video, embeds the audio, and simultaneously outputs the signal to two identical HDMI, one HDBaseT and one 3G HD-SDI output, together with S/PDIF and balanced stereo audio outputs. The unit also includes an audio amplifier and speaker outputs.

Kramer VP-774AMP Applications:

  • Projection systems in conference rooms, boardrooms,auditoriums, hotels and churches, production studios, rental and staging
  • Any application where high quality conversion and switching of multipleand different video signals to graphical data signals is required forprojection purposes

Kramer VP-774AMP Features:

  • K-IIT XL™ Picture-in-Picture Image InsertionTechnology - Ultra-stable picture-in-picture, picture-and-picture, and splitscreen capability. Any video source can be inserted into or positioned next toany other video source with full window positioning and sizing controls.
  • Kramer’s PixPerfect™ Scaling Technology - Kramer’sprecision pixel mapping and high quality scaling technology. High-quality 3:2and 2:2 pull down de-interlacing and full up- and down-scaling of all videoinput signals.
  • State-of-the-Art Video Processing Technology - Forhighest quality de-interlacing, noise reduction, and scaling performance forboth standard-definition and high-definition signals.
  • Ultra-Fast Fade-Thru-Black (FTB™) Switching - Videoswitching transitions are clean and ultra fast. The video fades to black andthe new input fades from black for smooth, glitch-free switching. The outputsignal provides constant sync so the display never glitches.
  • HDCP Compliant - The HDCP (High Definition ContentProtection) license agreement allows copy-protected data on the HDMI input topass only to the HDMI output.
  • Advanced EDID Management - Per input; analyzes theEDID of a selectable Master connection to one of the outputs.
  • Mass Notification Emergency Communication System(MNEC) - Activates a national or campus-wide notification, immediatelydisplayed when an emergency situation develops. It uses automatic textoverlaying, either via a crawler or a full screen cover up, as well as anoptional audio alert.
  • Max. Data Rate - 6.75Gbps (2.25Gpbs per graphicchannel).
  • Multi-Standard SDI Support - SDI (SMPTE 259M), HD-SDI(SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
  • Scaled Outputs - 2 HDMI, 1 HDBaseT, 1 3G HD-SDI (alloutputs work simultaneously).
  • Output Resolutions - HDTV and computer graphics up to2K and 1080p/UXGA with selectable refresh rates.
  • HDMI Deep Color Support - For all inputs andoutputs.
  • Luma Keying - Via PIP window.
  • Vertical Keystone Operation.
  • Built-in Proc-Amp - With enhanced functions such ascolor correction, gamma and dither.
  • Multi-Standard Video Support - NTSC (3.58/4.43), PAL(M/N/60) and SECAM with advanced de-interlacing options.
  • Built-in Time Base Corrector - Stabilizes unstablevideo sources.
  • Picture Zooming - Both on main and PIP window from100% to 1600%, including separate V and H sharpness control.
  • Input and Output Colorspace Control.
  • Audio Support - Unbalanced stereo audio inputs, withtwo microphone inputs; digital stereo and balanced stereo outputs; input andoutput audio level adjustment.
  • Selectable Microphone Talkover or Mix Modes.
  • Microphone Inputs - 2 dynamic or condenser (with 48Vphantom voltage).
  • Audio Amplifier & Speaker Output - 2x10W.
  • Automatic Detection and Selection of Embedded Audio -Automatically outputs the signal from the HDMI and DP embedded audio inputs orperforms an analog takeover to output the respective analog audio input.
  • Range - Up to 130m (430ft) normal mode; up to 180m(590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables.
  • On-Screen Display (OSD) - For easy setup andadjustment, accessible via the IR remote control and via the front-panelbuttons.
  • Built-in Web Page Server.
  • Non-Volatile Memory - Saves final settings.
  • Firmware Upgrades - Via Ethernet and RS-232.
  • Flexible Control Options - Front panel buttons, OSD(on-screen display) via front panel buttons or IR remote (remote controlincluded), embedded Web server.
  • Port Tunneling - A bidirectional RS-232 interfacewhere simple control commands and data can flow in both directions from acontroller to the VP-773 via the Ethernet, allowing status requests andcontrol of the destination unit.
  • Selectable Power Save Modes - For efficient energyuse.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included.

Kramer VP-774AMP Specifications:

  • Inputs:
    • 4 HDMI (Deep Color) connectors
    • 2 VGA on 15-pin HD connectors
    • 1 composite video on an RCA connector
    • 1 DisplayPort connector
    • 4 HDMI, 2 VGA, 1 DP, 1 CV unbalanced stereo audio on left and right RCA connectors
    • 2 mic on 3.5mm mini jack connectors, 1 3G HD-SDI on a BNC connector
  • Outputs:
    • 2 HDMI (Deep Color) connectors
    • 1 HDBaseT on an RJ-45 connector
    • 1 S/PDIF digital audio on an RCA connector
    • 1 balanced stereo audio on a 5-pin terminal block connector, 1 3G HD-SDI on a BNC connector, 1 stereo speaker output, 2x10W, on a 4-pin terminal block connector.
  • Standards Compliance: Supports HDMI (Deep Color),HDCP, DisplayPort 1.1a.
  • Output Resolutions: 640x480 @60, 640x480 @75, 800x600@50, 800x600 @60, 800x600 @75, 1024x768 @50, 1024x768 @60, 1024x768 @75,1280x768 @50, 1280x768 @60, 1280x800 @60, 1280x1024 @50, 1280x1024 @60,1280x1024 @75, 1360x768 @60, 1366x768 @50, 1366x768 @60, 1400x1050 @50,1400x1050 @60, 1600x900 @60, 1600x1200 @50, 1600x1200 @60, 1680x1050 @60,1920x1200 @60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60,1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60, 2048x1080 @60Hz, 2048x1080 @50Hz.
  • Controls: Front panel buttons, OSD, IR remotecontrol, RS-232 on a 9-pin D-sub connector, Ethernet.
  • Operating Temperature: 0° to +40°C (32° to104°F).
  • Storage Temperature: -40° to +70°C (-49° to158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Power Source: 100-240V AC, 40VA max.
  • Dimensions: 19" x 9.3" x 1U (W, D, H) rackmountable.
  • Weight: 3kg (6.6lbs) approx.
  • Included Accessories: Power cord, rack “ears”, IR remote control
