Product Overview

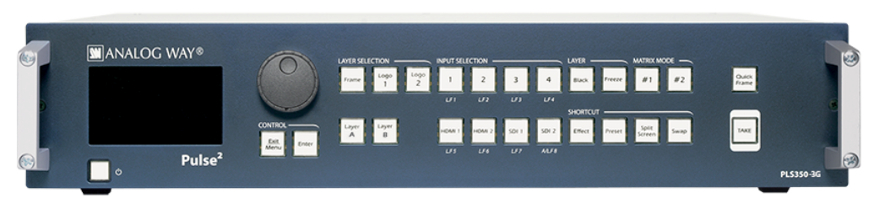

The Pulse² (PLS350-3G) from Analog Way is a Dual Scaler Hi-Resolution Seamless Switcher based on Analog Way’s new Midra™ platform. This Large Venue presentation switcher will allow you to increase your capabilities while configuring your first show and unleash your creativity for a new experience in show and event management.
What's in the Analog Way Pulse² Box:
- 1 x Power Supply Cord
- 1 x Ethernet crossover cable
- 1 x Remote Control Software (RCS²)
- 1 x Set of 6 audio 5-pin screw terminals
- 1 x Front Rack Ears
- 1 x User Manual (PDF version)
- 1 x Quick Start Guide
Analog Way Pulse² Features:
- New Remote Control Software: RCS² (Windows, Mac & Linux)
- Very fast processing and switching
- 2 operating modes: Mixer and Native Matrix modes
- Up to 2 layers on Frame Background
- Full audio digital compliant on DVI-D & HDMI Plugs
- Quick Frame mode
- Direct Swap function
- New Freeze features (Input/layer/screen)
- Ability to modify the Program in real time without using the Preview
- Capability to switch between any input plugs (14 plugs available)
- Outputs fully resizable
Analog Way Pulse² Specifications:
- 8 Seamless inputs
- 2 outputs (Program and Preview)
- 1 x 3G/HD/SD-SDI output plug useable as video output or Program clone
- 14 input plugs available (4 x DVI-D, 4 x HDMI, 4 x Universal Analog & 2 x 3G/HD/SD-SDI)
- Layer: Pan & Zoom resizing up to 1000%
- All audio inputs can be embedded or de-embedded on all plugs
- Audio Top layer mode
- Balanced stereo audio on all outputs
- 2 S/PDIF inputs and 2 S/PDIF outputs
- Chroma/Luma Key and Titling
- 8 Memory Presets per output (64 via RCS²)
- 8 Full Frames, 8 Logo Memories & 1 animated Logo
- For this info, please refer to the attached documentation.
