Philips Color Kinetics 116-000032-00
ColorBlaze TR4 with Intelligent RGBA 4 Foot LED and 10° Beam Angle

OUR PART #  116-000032-00

Our Price: $3,430.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

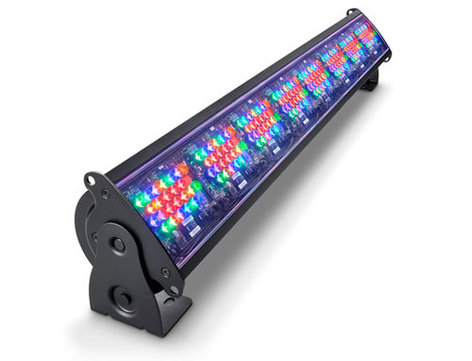

The Philips Color Kinetics 116-000032-00 is part of the ColorBlaze TR4 family, and is a 4-foot long, intelligent RGBA LED light batten with standard 10° beam angle. It features individually addressable 152 mm (6 in) segments to accommodate fine control of color-changing effects and pre-programmed light shows. RGBA fixtures create intense yellow and gold hues that are hard to obtain on RGB fixtures.

The ColorBlaze TR4 Family
The ColorBlaze TR4 family extends the range and flexibility of the popular line of high-performance, touring and rental battens from Philips Color Kinetics, by providing four channel fixture options. These intelligent RGBW or RGBA fixtures offer an expanded palette of intensely saturated full-color light output in two different beam angles. Expanded on-board controls feature a range of new functions, including multiple color control modes, 8- and 16-bit resolution, a configurable intensity channel, transition speeds, dimming curves, improved color consistency with Chromasync technology, and four built-in effects (Fixed Color, Color Wash, Chasing Rainbow, and Random Color). Connectorized cabling, a universal power input range, and direct line-voltage operation make ColorBlaze TR4 Powercore fixtures easy to install and operate.

Philips Color Kinetics 116-000032-00 Features:

  • Fine Control
    Individually addressable 152 mm (6 in) segments accommodate fine control of color-changing effects and pre-programmed light shows.
  • Expanded Color Palettes
    Channels of amber or neutral white LEDs seamlessly blend with channels of red, green, and blue LEDs. In addition to the millions of saturated colors achievable with standard RGB lighting fixtures, RGBA fixtures create intense yellow and gold hues that are hard to obtain on RGB fixtures.
  • Built-in Effects
    Offers Fixed Color, Color Wash, Chasing Rainbow, and Random Color effects, without the need for an external controller.
  • ColorBlaze TR4 Powercore
    Delivers approximately 2000 lumens of light per foot. Superior beam quality offers striation-free saturation for several feet from fixture placement with no visible light scalloping between fixtures.
  • Flexible Color Control
    4-channel RGBA-in / -out and 3-channel RGB-in allows three-channel RGB mapped to 4-channel RGBA out.
  • Superior Color Consistency and Accuracy
    Optibin, an advanced binning algorithm, sets a new standard for the color consistency and uniformity of LED sources used in manufacturing. Chromasync technology achieves unprecedented consistency of light performance and color precision across multiple fixtures in an installation, while maximizing intensity and color range.
  • 16-bit Resolution
    Supports smooth dimming and precise color control. Adjustable dimming curves and LED transition speeds emulate the behavior of other Philips Color Kinetics fixtures and conventional theatrical fixtures with DMX dimming.
  • Easy Configuration
    Push button addressing and on-board addressing offers easy configuration without external addressing tools.
  • Control Options
    Master / slave mode lets you configure a ColorBlaze TR4 to act as a master controller for other fixtures in a run.

Philips Color Kinetics 116-000032-00 Specifications:

  • Output:
    • Beam Angle: 10°
    • Lumens: 7,805
    • LED Channels: Red/Green/Blue/Amber
    • Lumen Maintenance†: 109,000 hours L70 @ 50° C
  • Electrical:
    • Power Consumption: 230 W, Maximum at full output, steady state
  • Control:
    • Interface: DMX
    • Control System: Philips full range of controllers, including ColorDial Pro, Light System Manager, and iPlayer 3, or third-party controllers
  • Physical:
    • Dimensions (LxWxD): 7.5" x 45.3" x 7.74" (191 mm x 115 mm x 197 mm)
    • Weight: 29.1 lbs. (13.2 kg)
    • Housing: Extruded aluminum, black finish
    • Lens: Clear polycarbonate
    • Fixture Connections: IEC power cable, RJ45, Ethercon, or XLR-5 data connections
    • Temperature Ranges:
      • -40° – 50°C (-40° – 122°F) Operating
      • -20° – 50°C (-4° – 122°F) Startup
      • -40° – 80°C (-40° – 176°F) Storage
    • Humidity: 0 – 95%, non-condensing
  • Certification and Safety:
    • Certification: UL / cUL, CE, FCC Class A
    • Environment: Dry Location, IP20

*Lumen measurement complies with IES LM-79-08.
† L70 = 70% lumen maintenance (when light output drops below 70% of initial output).
Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.

Due to continuous improvements and innovations, specifications may change without notice.
