Product Overview

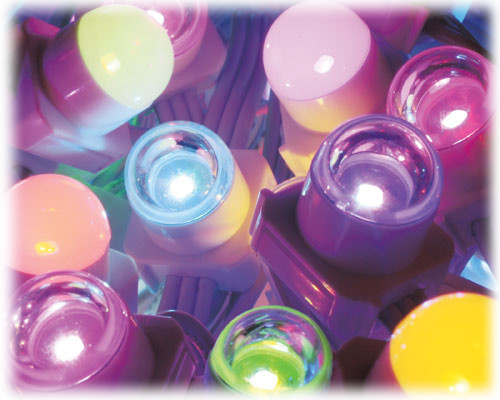

The Philips Color Kinetics 101-000076-06 iColor Flex MX gen2 is a multi-purpose, high-intensity strand of 50 full-color LED nodes for generating extraordinary effects without the constraints of fixture size or shape. iColor Flex MX gen2 enables patterns and video on almost any interior or exterior surface, including ceilings, floors, three-dimensional objects, sculptures, and more. Its small node size allows installation in tighter spaces than the larger iColor Flex LMX gen2 strands.
The 101-000076-06 is the black-colored strand with Clear Dome Lens nodes, spaced in 4" on-center increments.
The flexible form factor accommodates two- and three-dimensional configurations, while high light output affords superior long-distance viewing for architectural accent and perimeter lighting, large-scale signage, and building-covering video displays.
Philips Color Kinetics 101-000076-06 Features:
- Supports cost-effective video displays
- Flexible form factor, offering maximum lighting control at 25 W per strand, accommodates unique lighting installations, including two- and three-dimensional video displays, with each node producing full-color, daylight-visible light output of up to 2.3 candela.
- Adaptable mounting
- Strands can be mounted directly to a surface, like traditional string lights. Detachable leader cables in multiple lengths allow you to install strings at the appropriate distance from power /data supplies. Optional mounting tracks ensure straight linear runs, while snap-on spacers hide cabling and mounting hardware. Single node mounts can be positioned individually as anchor points for installations with uneven node spacing or complex geometries.
- Standard and custom lengths and node spacing
- The model 101-000076-06 iColor Flex MX gen2 strand comes standard with on-center node spacing of 4 in. (102 mm) along a three-wire, 18 AWG cable. Custom on-center node spacing from 2" (51 mm) to 24" (610 mm) supports virtually any lighting or video design and offers finer pixel pitch than the larger Flex strands. Standard 50-node lengths can be shortened in the field. Custom lengths of 5 to 72 nodes are also available (sold separately).
- Custom Leader Cables
- Custom Leader Cable lengths are available in addition to standard cables of 25 ft. (7.6 m), 50 ft. (15.2 m), and 100 ft. (30.5 m) (sold separately).
- Industry-leading controls
- iColor Flex MX gen2 works seamlessly with the complete Philips line of controllers, including Video System Manager Pro, Light System Manager, and iPlayer 3, as well as third-party DMX controllers.
- Durable and weather-resistant
- Fully sealed for maximum fixture life and IP66-rated for outdoor applications.
Philips Color Kinetics 101-000076-06 Specifications:
- Output
- Lumens Per Node*: 6
- *Lumen measurement complies with IES LM-79-08 testing procedures.
- On-Axis Candela Per Node: 2.3
- Luminance Per Node: 17,543 cd / m2
- Viewing Angle: 105°
- Lumen Maintenance†:
- 60,000 hours L70@ 50° C
- 60,000 hours L50@ 50° C
- 60,000 hours L70@ 25° C
- 60,000 hours L50@ 25° C
- †L50 = 50% lumen maintenance (when light output drops below 50% of initial output). Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.
- LED Channels: Red/Green/Blue
- Electrical
- Input Voltage: 7.5 VDC via sPDS-480ca, and PDS-60ca
- Power Consumption: .5 W max. per node at full output, steady state
- Control
- Interface:
- sPDS-480ca 7.5V (Ethernet)
- PDS-60ca 7.5V (Pre-programmed or DMX / Ethernet)
- Control System: Philips full range of controllers, including Video System Manager Pro, Light System Manager, and iPlayer 3, or third-party controllers
- Physical
- Node Dimensions (HxWxD): .75" x .63" x .63" (19 mm x 16 mm x 16 mm)
- Weight: 13.4 oz. (381 g)
- Housing: Black polycarbonate
- Lens: Clear plastic
- Temperature Ranges:
- -40° – 50° C (-40° – 122° F) Operating: =0° C ( = 32° F) Handling
- -20° – 50° C (-4° – 122° F) Startup: -30° – 85° C (-22° – 185° F) Storage
- Humidity: 0 – 95%, non-condensing
- Maximum Fixtures Per Power / Data Supply:
- sPDS-480ca 7.5V: 16 strands
- sPDS-60ca 7.5V: 2 strands
- Fixture Connections: Integrated watertight 3-pin connector
- Certification and Safety
- Certification: UL / cUL, FCC Class A, CE
- Environment: Dry / Damp / Wet Location, IP66
- Due to continuous improvements and innovations, specifications may change without notice.
