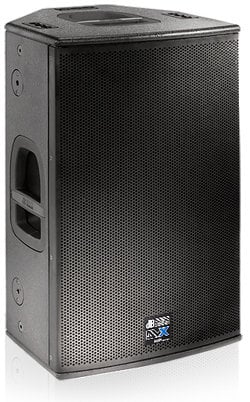

DB Technologies DVX D12 HP
1400W Active 12" 2-Way Speaker

OUR PART #:  DVX-D12-HP

Configured as a classic 12"/1.4" 2-way system, the dB Technologies DVX D12 HP is a compact, astonishingly light enclosure offering very flexible application options.
Learn More
Our Price: $1,799.00
List Price: $2,200.00
You save 18%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DB Technologies DVX D12 HP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Configured as a classic 12"/1.4" 2-way system, the dB Technologies DVX D12 HP is a compact, astonishingly light enclosure offering very flexible application options.  Its integrated, high-performance digipro G2 digital power amp delivers exceedingly dynamic response, crisp and tight low end, and tremendous sound pressure.

Loaded with high-quality speakers, it provides high-end audio performance with maximum reliability and minimum power compression.
 A 1.4" driver with a 2.5" voice coil designed to handle highest loads renders vocals with amazing accuracy across medium-to-longer throw distances.

The housing's multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes.

1400W Active Speaker

The onboard controller even provides a special monitor setup that specifically adapts the enclosure's performance for use as a monitor.

This DSP also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.

The DVX D12 HP is the perfect match for the DVA Series subwoofers.

dB Technologies DVX D12 HP Specifications:

  • Speaker Type: 2-Way Active Speaker
  • Acoustical data:
    • Frequency Response [-10dB]: 55 Hz - 20 kHz
    • Frequency Response [+/- 3dB]: 68 Hz - 19 kHz
    • Max SPL: 131 dB
    • HF: 1.4"
    • Voice Coil HF: 2.5"
    • Directivity: 60x40°
    • Horn: CD Horn Aluminium
    • Rotatable Horn: Yes
    • LF: 12"
    • Voice Coil LF: 3"
  • Amplifier:
    • Amp Technology: Digipro® G2
    • Amp Class: Class D
    • Power RMS: 700 W
    • Peak Power: 1400 W
    • Cooling: Convection
  • Processor:
    • Controller: DSP 24 Bit/48 kHz
    • System Presets: FOH, Monitor
    • Limiter: RMS, Peak. Thermal, Multiband
    • Crossover Frequency MF-HF: 1350 Hz
    • Slope MF-HF: 24 dB/Octave
  • Input:
    • Mechanics:
      • Housing: Multiplex birch plywood
      • Housing Design: Multifunctional
      • Angles Up: Monitor use 45 °
      • Rigging Points: 6x M10 4x Quick-Relase Pins
      • Flytracks: 3x on top 3x on bottom
      • Dimensions: 14.8" W x 25" H x 15.8" D (370 x 625 x 395 mm)
      • Weight: 60.63 lbs (27.5 kg)
