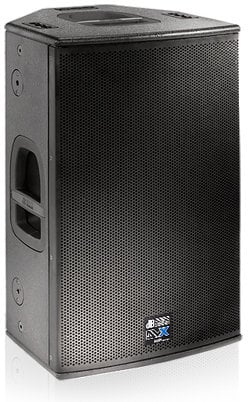

DB Technologies DVX D10 HP 10" 2-Way Active Speaker, 600W

The dB Technologies DVX D10 HP is an active 10"/1" two-way speaker cabinet perfect for use in music and speech reinforcement applications demanding true frequency response, balanced dynamic response, and assertive sound pressure levels.

Equipped with a high-quality 10" woofer and a 1" compression driver with rotatable CD horn, the DVX D10 HP is fullrange enabled and can be deployed for many applications without an added subwoofer.

1200W Active Speaker

The housing's multifunctional design incorporates a slanted panel for monitoring, rigging points, and even a special monitor setup controlled by the onboard DSP, which also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.

Combining the DVX D10 with a DVA series subwoofer creates remarkably powerful yet compact satellite systems.

dB Technologies DVX D10 HP Specifications:

• Speaker Type: 2-Way Active Speaker
• Acoustical data:
  • Frequency Response [-10dB]: 70 Hz - 20 kHz
  • Frequency Response [+/- 3dB]: 85 Hz - 19 kHz
  • Max SPL: 127 dB
  • HF: 1"
  • Voice Coil HF: Titanium 1.7"
  • Directivity: 90x70°
  • Horn: CD Horn Aluminium
  • Rotatable Horn: Yes
  • LF: 10"
• Amplifier:
  • Amp Technology: Digipro® G2
  • Amp Class: Class D
  • Power RMS: 600 W
  • Peak Power: 1200 W
  • Cooling: Convection
• Processor:
  • Controller: DSP 24 Bit/48 kHz
  • System Presets: Flat, Monitor
  • Limiter: RMS, Peak. Thermal, Multiband
  • Crossover Frequency MF-HF: 1600 Hz
  • Slope MF-HF: 24 dB/Octave
• Input:
  • Mechanics:
  • Housing: Multiplex birch plywood
  • Housing Design: Multifunctional
  • Angles Up: Monitor use 45°
  • Rigging Points: 6x M8, 2x 10mm Quick-Release for DTF-bracket
  • Flytracks: 3x on top 3x on bottom
  • Dimensions: 11.6" W x 20.4" H x 12.4" D (290 x 510 x 310 mm)
  • Weight: 34.83 lbs (15.8 kg)
