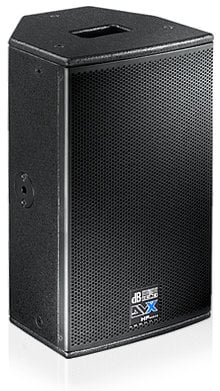

DB Technologies DVX D8 HP
800W Active 2-Way Speaker

OUR PART #:  DVX-D8-HP

The dB Technologies DVX D8 HP is a powerful active 8"/1" 2-way speaker cabinet designed to render speech and background and other music.
Learn More
Our Price: $1,199.00
List Price: $1,500.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DB Technologies DVX D8 HP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The dB Technologies DVX D8 HP is a powerful active 8"/1" 2-way speaker cabinet designed to render speech and background and other music.

Loaded with a high-quality 8" woofer and a 1" compression driver with a rotatable CD horn, it is a very articulate with great speech intelligibility and excellent audio properties.

Equipped with an integrated digiproG2 digital power amp, this powered enclosure offers the compact dimensions and light weight that to date have been the domain of high-end passive loudspeakers.

Active Speaker 800 Watt

The housing's multifunctional design incorporates a slanted panel for monitoring, rigging points, and even a special monitor setup controlled by the onboard DSP, which also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.

Combining the DVX D8 HP with a DVA series S08 ore S09 subwoofer creates premium quality satellite systems.

dB Technologies DVX D8 HP Specifications:

  • Speaker Type: 2-Way Active Speaker
  • Acoustical data:
    • Frequency Response [-10dB]: 75 Hz- 20 kHz
    • Frequency Response [+/- 3dB]: 100 Hz - 19 kHz
    • Max SPL: 125 dB
    • HF: 1"
    • Voice Coil HF: Titanium 1.7"
    • Directivity: 90x70°
    • Horn: CD Horn Aluminium
    • Rotatable Horn: Yes
    • LF: 8"
    • Voice Coil LF: 2"
  • Amplifier:
    • Amp Technology: Digipro® G2
    • Amp Class: Class D
    • Power RMS: 400 W
    • Peak Power: 800 W
    • Cooling: Convection
  • Processor:
    • Controller: DSP 24 Bit/48 kHz
    • System Presets: Flat, Monitor
    • Limiter: RMS, Peak. Thermal, Multiband
    • Crossover Frequency MF-HF: 1800 Hz
    • Slope MF-HF: 24 dB/Octave
  • Input:
  • Mechanics:
    • Housing: Multiplex birch plywood
    • Housing Design: Multifunctional
    • Angles Up: Monitor use 45°
    • Rigging Points: 6x M8 2x 10mm Quick Release for DTF-bracket
    • Dimensions: 10" W x 17" H x 10.4" D (250 x 425 x 260 mm)
    • Weight: 9.7 kg (21.38 lbs)
