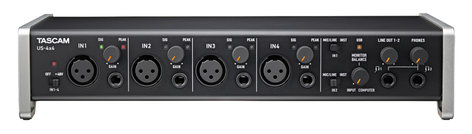

Tascam US-4x4 4 X 4 USB Audio/ MIDI Interface Image 1
Tascam US-4x4 4 X 4 USB Audio/ MIDI Interface Image 2
Tascam US-4x4 4 X 4 USB Audio/ MIDI Interface
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Tascam US-4x4 combines great audio quality and ergonomic design for a powerful 4-in/4-out USB2.0 audio interface.

Four of Tascam’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op-amps for rich sound quality without coloring the source.

The US-4x4 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers. The interface includes two DAW applications to choose from – both Cakewalk SONAR X3 LE and Ableton Live Lite 9.

The US-4x4 records all four channels at up to 96kHz/24-bit resolution. Even if your target is CD or MP3, recording at higher resolutions gives you more to work with in the mix and can result in a smoother sound. The mic preamps and A/D converters work together to capture the clearest signal path, whether you work at 96k or at lower sampling rates.

The US-4x4 is built with class-compliant drivers built into the unit. Not only does this mean that it can be used with many computers without first installing a driver, it also opens the possibilities of use with tablets such as Apple's iPad.

Use Apple's Camera Connection Kit (sold separately) to connect the US-4x4 to an iPad or other iOS device. Utilize the multichannel audio and MIDI functions with any of the thousands of iOS audio apps, like Garage Band or Tascam's Portastudio app. Class Compliant drivers also allow the interfaces to be used with Android and Windows-based tablets. (When connected, the US-4x4 will not provide power to the iOS device.)

Tascam US-4x4 Includes:

  • Free copy of Steinberg Cubase LE as the bundled DAW
  • AC Adapter (GPE248-120200-Z)
  • USB cable
  • SONAR X3 LE license card
  • Ableton Live 9 Lite license card
  • User's manual
  • Warranty card

Tascam US-4x4 Features:

  • Ultra-HDDA (High Definition Discrete Architecture) mic preamps with -125dBu EIN
  • NE5532 op-amps used at the audio input and output stages
  • Up to 96kHz/24-bit recording
  • Support for Windows and Mac OS X operating systems
  • USB2.0 computer connection
  • Connect with iPads and other iOS devices
  • +48V phantom power for all inputs
  • Two switchable high-impedance inputs
  • Microphone preamp gain range of 57dB
  • Direct monitoring function for zero-latency monitoring
  • Tough all-metal casing for durability
  • Angled design provides excellent usability on a desktop
  • Balanced analog TRS output jacks suitable for connection to powered monitors
  • Standard TRS headphones output jack
  • Separate controls for line and headphones output volumes
  • MIDI input and output
  • Output sources can be selected in the setting panel
  • Input sound monitoring can be set to stereo or mono
  • Input muting function eliminates noise from unused inputs
  • USB class compliant 2.0 support
  • License cards included for SONAR X3 LE/Ableton Live Lite 9
  • Confirmed operation with major DAW software (SONAR, Pro Tools, Cubase, Live, Studio One, Garage Band)

Tascam US-4x4 Specifications:

  • Sampling Frequency: 44.1/48/88.2/96kHz
  • Quantization Bit Rate: 16/24-bit
  • Mic In: In 1-4
    • Connector: XLR-3-3-1 (1: GND, 2: HOT, 3: COLD), Balanced
    • Input Impedance: 2.2kΩ
    • Nominal Input Level: Gain (MAX): -65dBu (0.0004Vrms), Gain (MIN): -8dBu (0.3090Vrms)
    • Maximum Input Level: +8dBu (1.9467Vrms)
    • Gain: 57dB
  • Inst In: In 1-2
    • Connector: 1/4" (6.3mm) TS jack (T: HOT, S: GND), Unbalanced (When set to INST at MIC/LINE,INST switch)
    • Input Impedance: 1MΩ
    • Nominal Input Level: Gain (MAX): -63dBV (0.0007Vrms), Gain (MIN): -6dBV (0.5015Vrms)
    • Maximum Input Level: +10dBV (3.162Vrms)
    • Gain: 57dB
  • Line In: In 1-4
    • Connector: 1.4" (6.3 mm) TRS jack (T: HOT, R: COLD, S: GND), Balanced (When set to LINE at MIC/LINE,INST switch)
    • Input Impedance: 10kΩ
    • Nominal Input Level: Gain (MAX): -53dBu (0.0017Vrms), Gain (MIN): +4dBu (1.228Vrms)
    • Maximum Input Level: +20dBu (7.75Vrms)
    • Gain: 57dB
  • Line Out:
    • Connector: 1/4" (6.3mm) TRS jack (T: HOT, R: COLD, S: GND), Balanced
    • Output Impedance: 110Ω
    • Nominal Output Level: +4dBu (1.273Vrms)
    • Maximum Output Level: +20dBu (7.75Vrms)
  • Phones:
    • Connector: 1/4" (6.3mm) stereo phone jack
    • Maximum Output Level: 45mW + 45mW or more (THD+N 0.1% or less, 32Ω loaded)
  • MIDI In/Out:
    • Connector: 5-pin DIN
    • Format: Standard MIDI format
  • USB:
    • Connector: USB B type 4-pin
    • Format: USB2.0 High Speed
  • Power:
    • When Connected to PC: Dedicated AC Adapter (GPE248-120200-Z, included)
    • When Connected to iOS Device: Dedicated AC Adapter (GPE248-120200-Z, included)
    • Power Consumption: 5W
  • Dimensions (WxHxD): 11.62" x 2.56" x 6.3" (186 x 65 x 160mm)
  • Weight: 3.53lbs (1.6kg)
  • Operating Temperature: 5° to 35°C
  • Bundled Software: Cakewalk SONAR X3 LE, Ableton Live 9 Lite
  • Audio Performance:
    • Frequency Response:
      • Line Out (Balanced): 44.1/48kHz: 20Hz - 20kHz +0dB/-0.1dB, 88.2/96kHz: 20Hz - 40kHz +0dB/-0.2dB
      • Phones: 44.1/48kHz: 20Hz - 20kHz +0dB/-0.5dB, 88.2/96kHz: 20Hz - 40kHz +0dB/-2dB
    • THD: 0.003% or less
    • S/N Ratio: 101dB or more
    • Crosstalk: 95dB or more
    • EIN: -127dBu or less
  • Windows: Windows 7 (32-bit SP1, 64-bit SP1), Windows 8.0 (32/64-bit), Windows 8.1 (32/64-bit)
    • Compatible Computers: Windows-compatible computer with a USB2.0 port
    • CPU Type/Speed: Dual core/2 GHz or faster (x86)
    • Memory: 2GB or more
    • Driver: ASIO 2.0, WDM (MME)
  • Mac: OS X Mountain Lion (10.8), OS X Mavericks (10.9)
    • Compatible Computers: Apple Macintosh computer with a USB2.0 port
    • CPU Type/Speed: Dual Core/2 GHz or faster
    • Memory: 2GB or more
    • Driver: Core Audio, Core MIDI
